Wall Dena

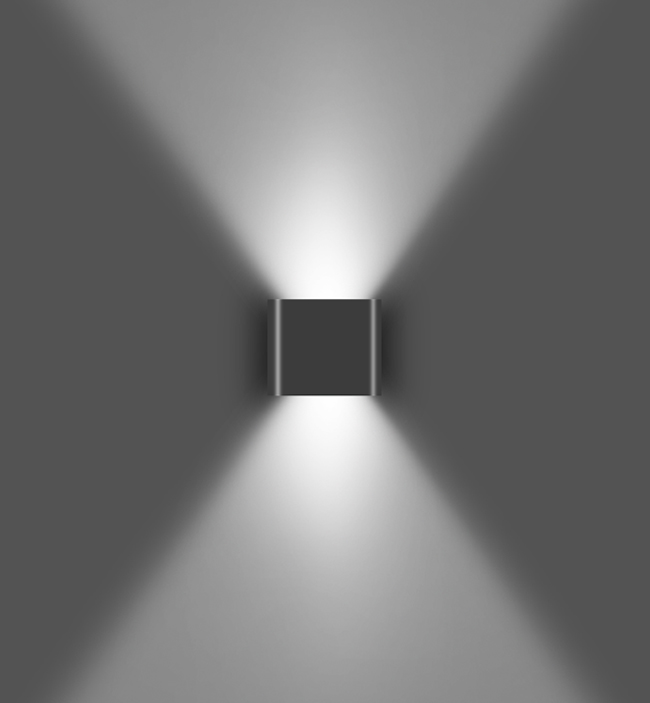

"Wall Dena" surface mounted range of LED wall lights are a perfect fit for varied indoor & outdoor lighting applications.Designed to illuminate the wall and surface in front of wall and for light accents on vertical surfaces.Aesthetically shaped wall mounted luminaire for updown lighting effects.

Product Description
• Luminaire made of aluminium & SS fasteners.
• Extruded reeded aluminium profile designed to throw upward and downward lighting.
• Polycarbonate optical lens.
• Mounting bracket for easy installation onto the wall.
• Surface mounting on wall using hardware after connecting to the power supply.
• Cable entries for through-wiring of mains supply cable.
• Integral constant current power supply.
• CRI ( Ra) : >80.
• Prewired with LED driver and suitable for operating on 240V,50Hz single phase ac supply.
• Ordering guide : KL-3665-CCT (Colour Temperature)
• Available CCT : 3000K,4000K,5700K.

Product Benefits
• High luminous efficiency at reduced wattage.
• Corrosion resistant and Maintenance free.
• Quick & simple installation.
• Sustainable LED technology offers durability and optimal light output with low power consumption.

Area of Application

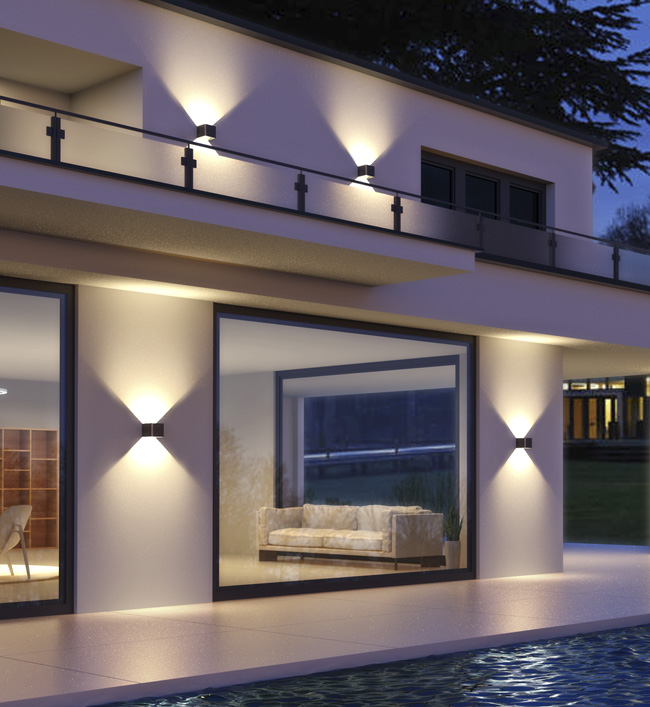

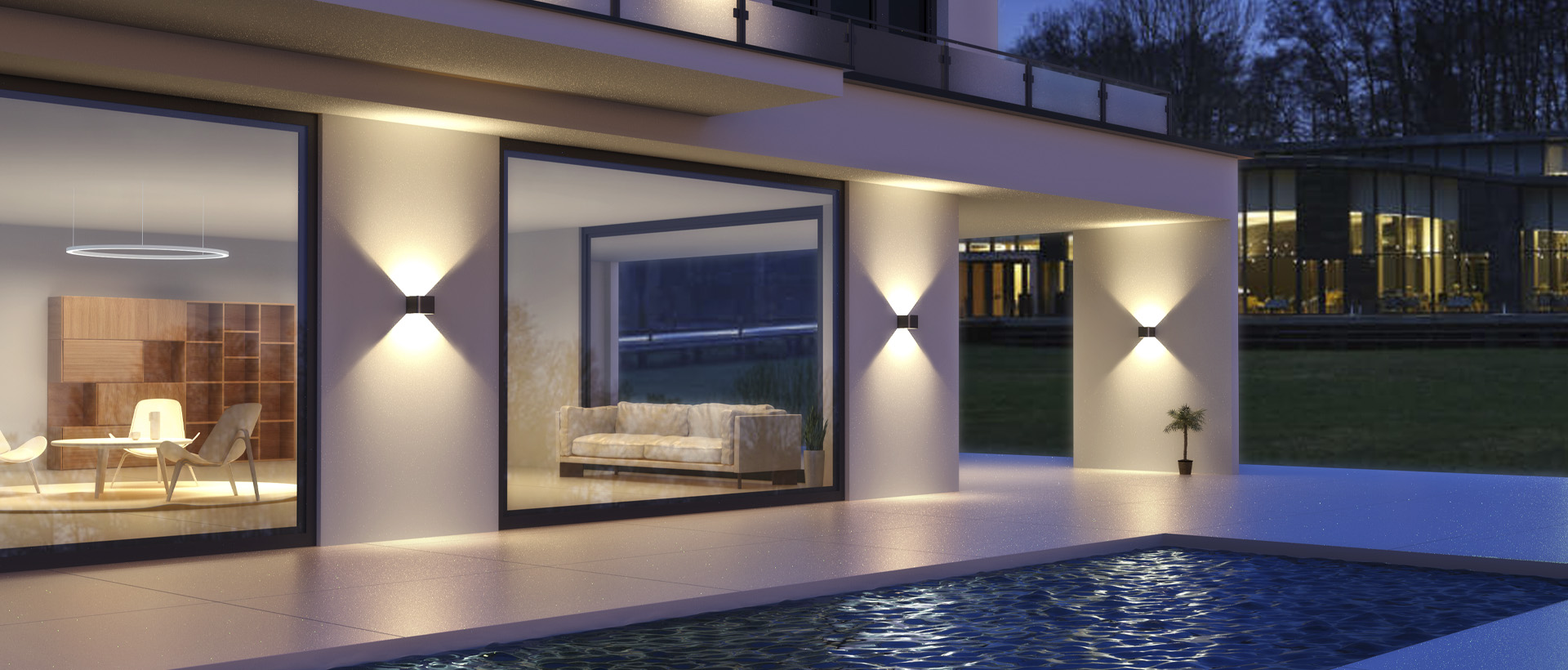

Residential,Building facade,Commercial centres,Passages,Pathways,Sculptures and Structures.

Available Finish
Pure polyester powder coated
• Graphite grey
• Anthracite grey
• Jet black.
IDWattageDimensionMounting IESPhotometryTechnical DatasheetTechnical Description
KL-36656W LED 2700K,3000K,4000K,5700K BA:120°, Polycarbonate Optical Lens113 x 108 x 94mmW18

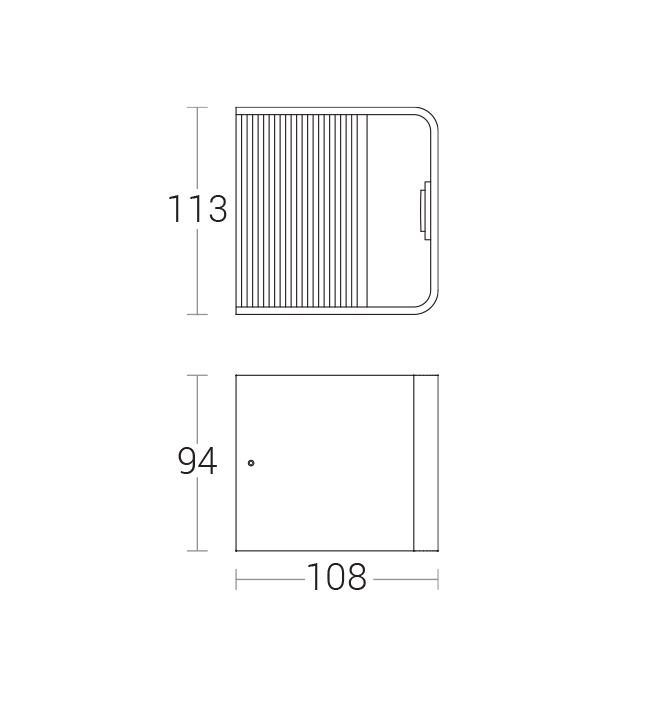

Detailed Foundation Drawing
KL-3665.IESKL-3665.PDF3665.pdf
KL-3665.txt
