Reflecto Dixon Mega

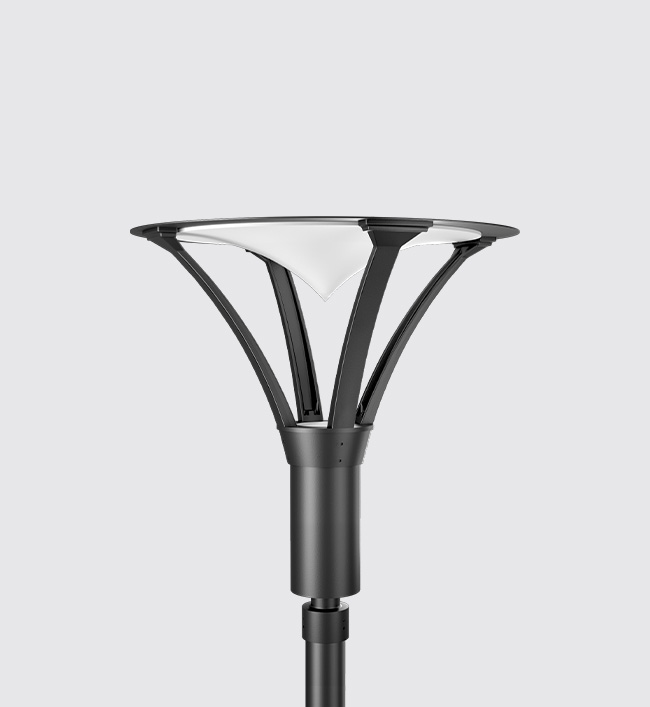

Aesthetically designed sturdy construction ensures a long life against all weather condition,maintaining initial performances through the lifetime of the installation.Low glare indirect post top luminaire designed for symmetrical light distribution.

Product Description
• Die cast aluminium spigot base integrated with extruded aluminium pipe and a collar.
• Reflector system made of spun aluminium white powder coated for high reflection and cast aluminium supporting brackets.
• The lamp along with control gear is housed inside and covered with a toughened glass diffuser at the top portion of extruded aluminium tube and the bottom portion attached to a mounting base.
• Suitable for mounting on 101mm OD pipe.
• Cable entries for through-wiring of mains supply cable.
• Integral constant current power supply.
• Prewired with LED driver and suitable for operating on 240V,50Hz single phase ac supply.
• Ordering guide : KL-4925-CCT (Colour Temperature)
• Available CCT : 2700K,4000K,5700K.

Product Benefits
• High luminous efficiency at reduced wattage.
• Elegant,Functionality.
• Environmental Friendly.
• Dark sky compliant protects pedestrians from glare,in addition to preventing spill light above the horizontal plane.
• Sustainable LED technology offers durability and optimal light output with low power consumption.

Area of Application

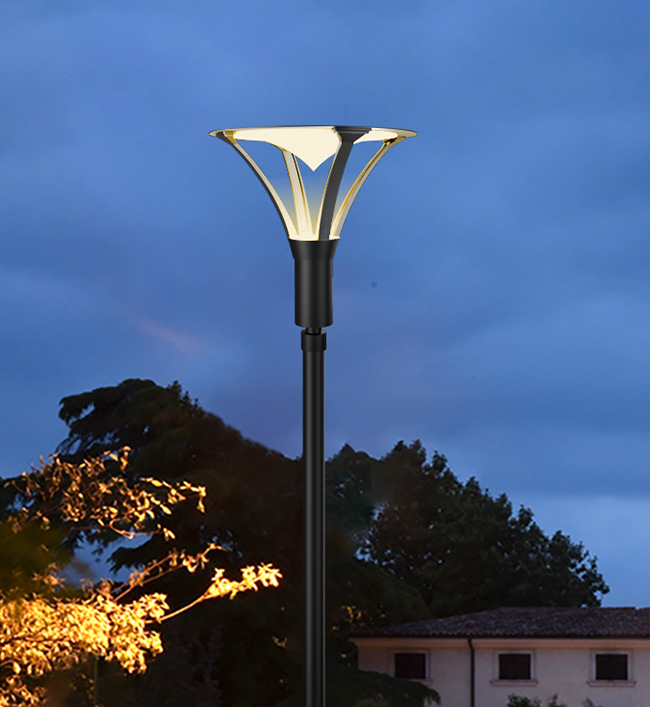

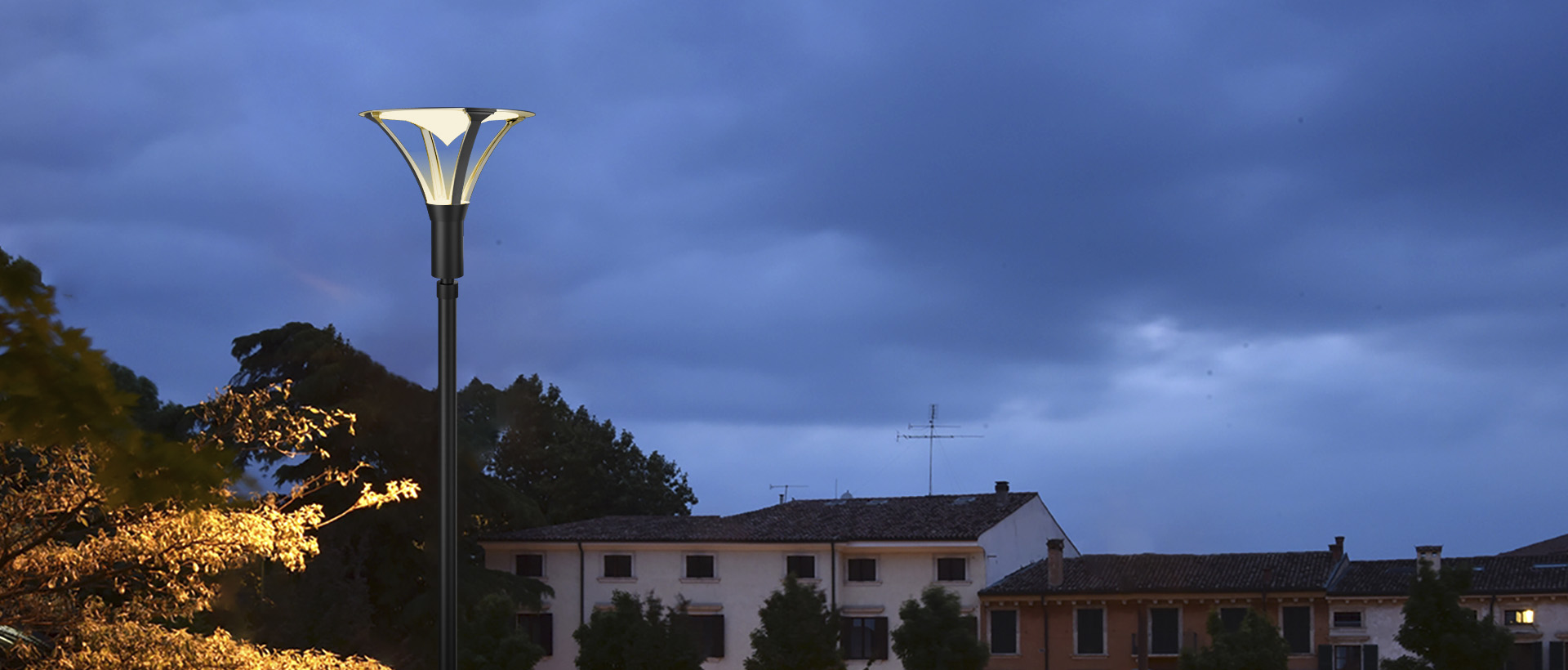

Illuminating parks,Gardens,Commercial complex,Residential roadways,Walkways,Streetscapes & office complex.

Available Finish
Pure polyester powder coated
• Graphite grey
• Anthracite grey
• Jet black.
IDWattageDimensionMounting IESPhotometryTechnical DatasheetTechnical Description
KL-492550W LED 2700K,4000K,5700K, Clear Toughened GlassØ900 x 945mmD13
KL-4925.IESKL-4925.PDF4925.pdf
