Bema7

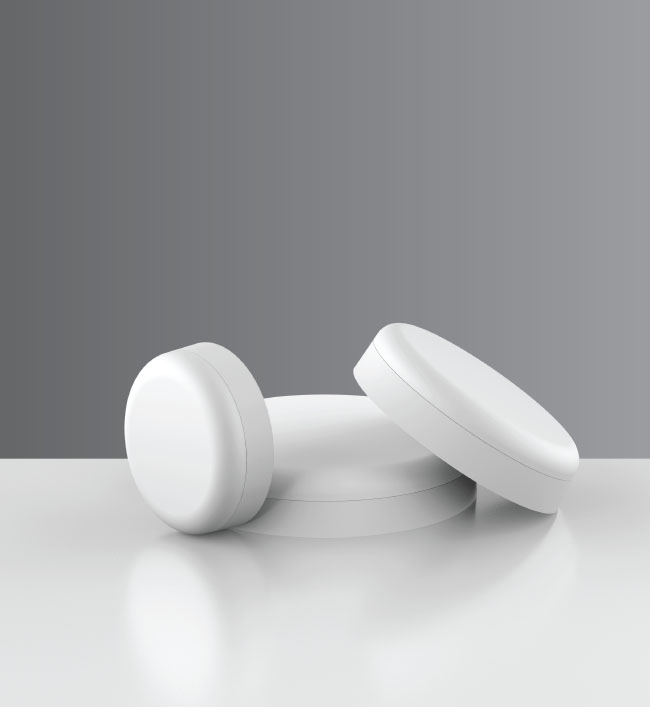

Bema 7 is a compact downlight with textured opal diffuser. It stands out for its natural integration into the ceiling thanks to a perimeter contour of soft lines and slight curvature.

Product Description
• LED ceiling surface mounted - indoor luminaire with soft & uniform light distribution.
• Luminaire made of die-cast aluminium for better thermal management.
• High efficiency diffuser for glare free, uniform light distribution.
• High PF constant current LED driver.
• Cable entries for through-wiring of mains supply cable
• Prewired with LED driver and suitable for operation on 240V, 50Hz single phase ac supply.
• Ordering guide : KL-3612 / 3613 / 3614-CCT ( Colour Temperature )
• Available CCT : 3000K, 4000K, 6000K.

Product Benefits
• Attractive high quality housing and optics.
• Visual comfort with maximum energy saving
• Sturdy construction in order to maintain performance of the luminaire and to reduce maintenance costs.
• Quick & simple installation.
• Flexible deployment options with a wide spectrum of applications.

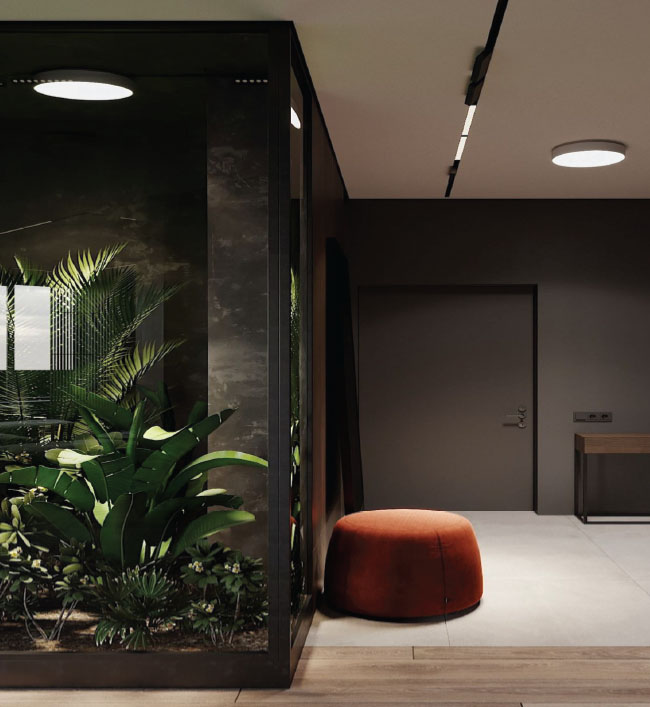

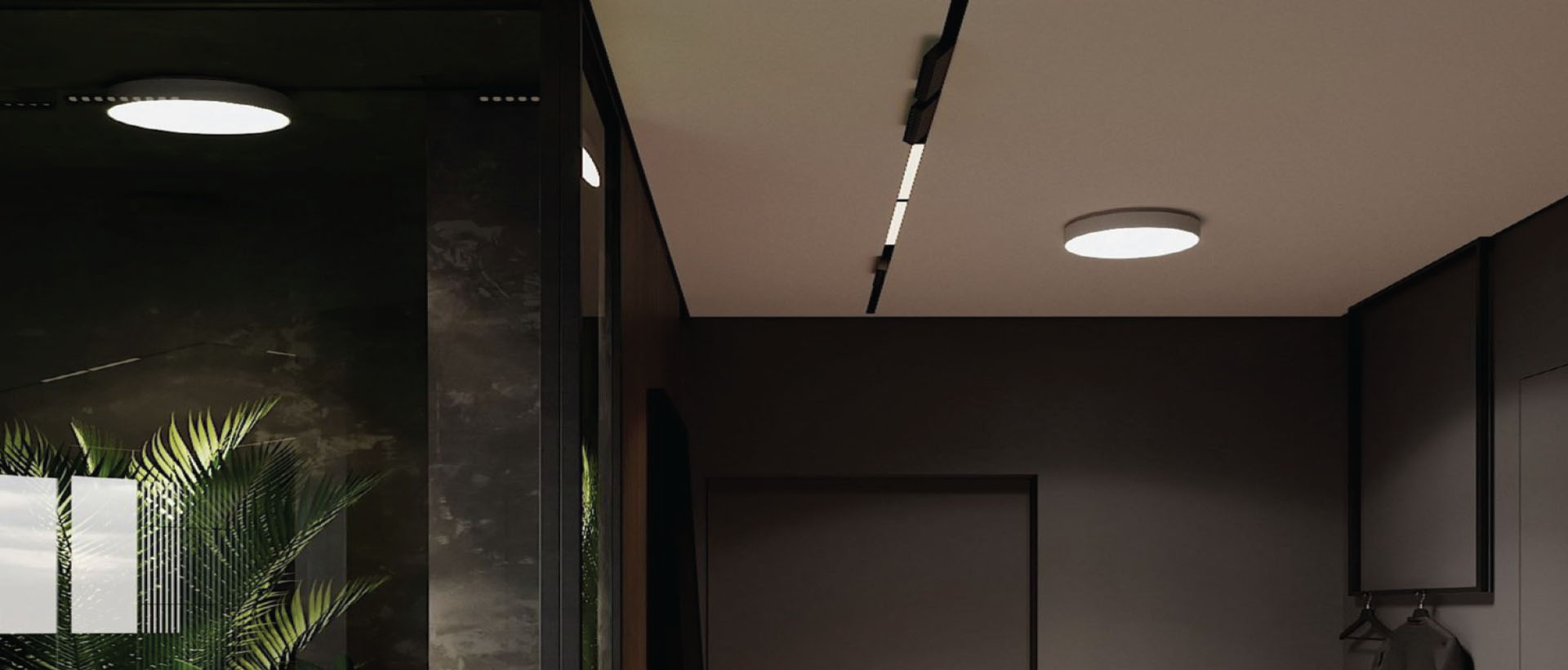

Area of Application
Lobbies & Foyers, Retail Sector, Corridors, Residential, Receptions, Internal passages, Hospitality Industry, Commercial & Business Centers, etc.

Available Finish
White epoxy polyester powder coating.

Downloads
Catalogue Page

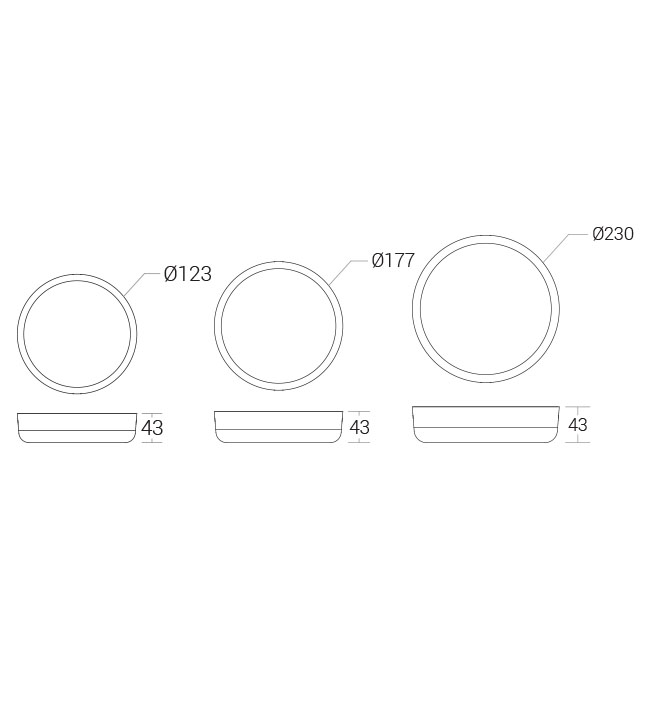

IDWattageDimensionMounting IESPhotometryTechnical DatasheetTechnical Description
KL-361212W LED 3000K,4000K,6500K BA:120°, Translucent PolystyreneØ123 x 43mmKL-3612-BA120°-WW.IES
KL-3612-BA120°-CW.IES
KL-3612-BA120°-NW.IES
KL-3612-BA120°-WW.PDF
KL-3612-BA120°-CW.PDF
KL-3612-BA120°-NW.PDF
3612.pdf
KL-3612.txt
KL-361322W LED 3000K,4000K,6500K BA:120°, Translucent PolystyreneØ177 x 43mmKL-3613-BA120°-WW.IES
KL-3613-BA120°-CW.IES
KL-3613-BA120°-NW.IES
KL-3613-BA120°-WW.PDF
KL-3613-BA120°-CW.PDF
KL-3613-BA120°-NW.PDF
3613.pdf
KL-3613.txt
KL-361432W LED 3000K,4000K,6500K BA:120°, Translucent PolystyreneØ230 x 43mmKL-3614-BA120°-WW.IES
KL-3614-BA120°-CW.IES
KL-3614-BA120°-NW.IES
KL-3614-BA120°-WW.PDF
KL-3614-BA120°-CW.PDF
KL-3614-BA120°-NW.PDF
3614.pdf
