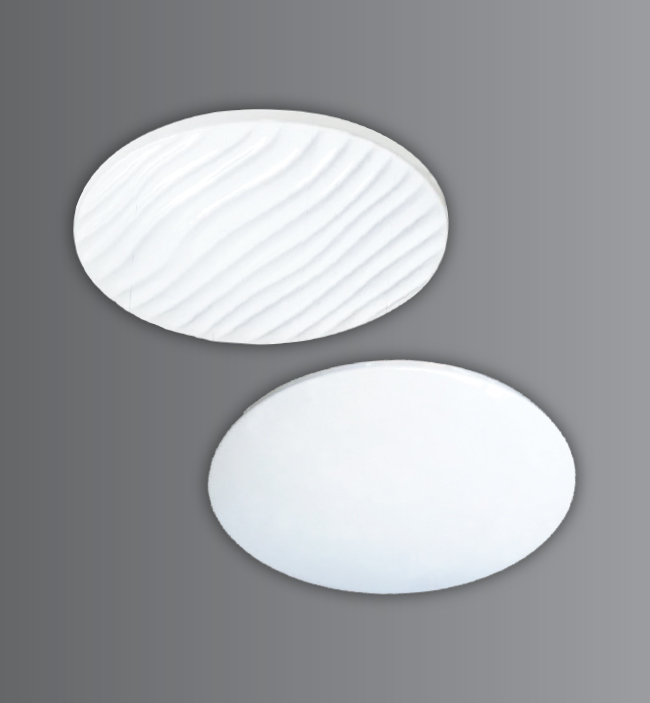

Volans Wavy / Volans
Volans surface mounted range of LED ceiling lights are a perfect fit for varied indoor lighting applications. Very efficient & effective light output with high light uniformity. A perfect range of luminaires suitable for both commercial and residential applications.

Product Description
• Luminaire made of CRCA galvanised steel sheet which is high corrosion resistant, sturdy & durable.
• UV stabilized translucent acrylic diffuser for excellent diffused lighting experience throughout the life of the fixture.
• Luminaire integrated with 36W LED.
• Cable entries for through-wiring of mains supply cable.
• Integral constant current power supply
• Prewired with LED driver and suitable for operation on 240V, 50Hz single phase ac supply.
• Ordering guide : KL-3174-CCT (Colour Temperature)
• Available CCT : 3000K, 4000K, 5700K

Product Benefits
• Elegant homogeneous designs.
• Visual comfort with maximum energy saving
• Sturdy construction in order to maintain performance of the luminaire and to reduce maintenance costs.
• Quick & simple installation.
• Flexible deployment options with a wide spectrum of applications.

Area of Application

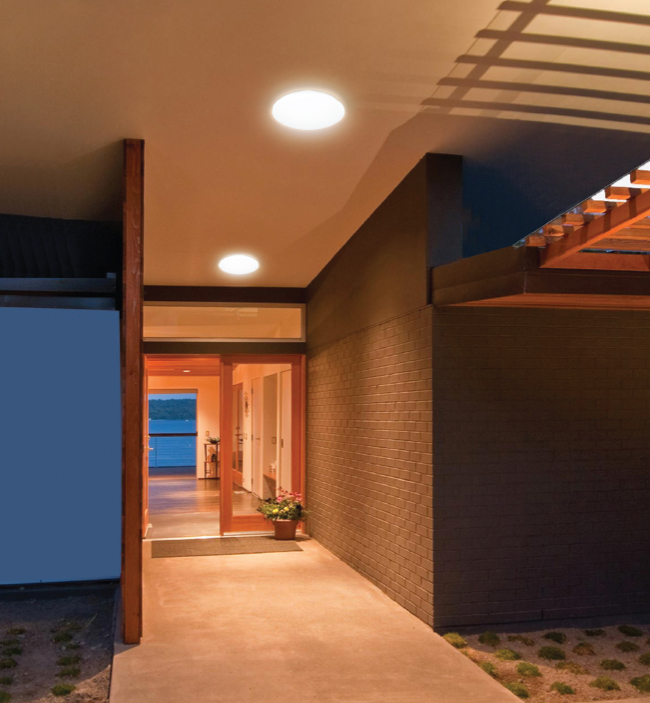

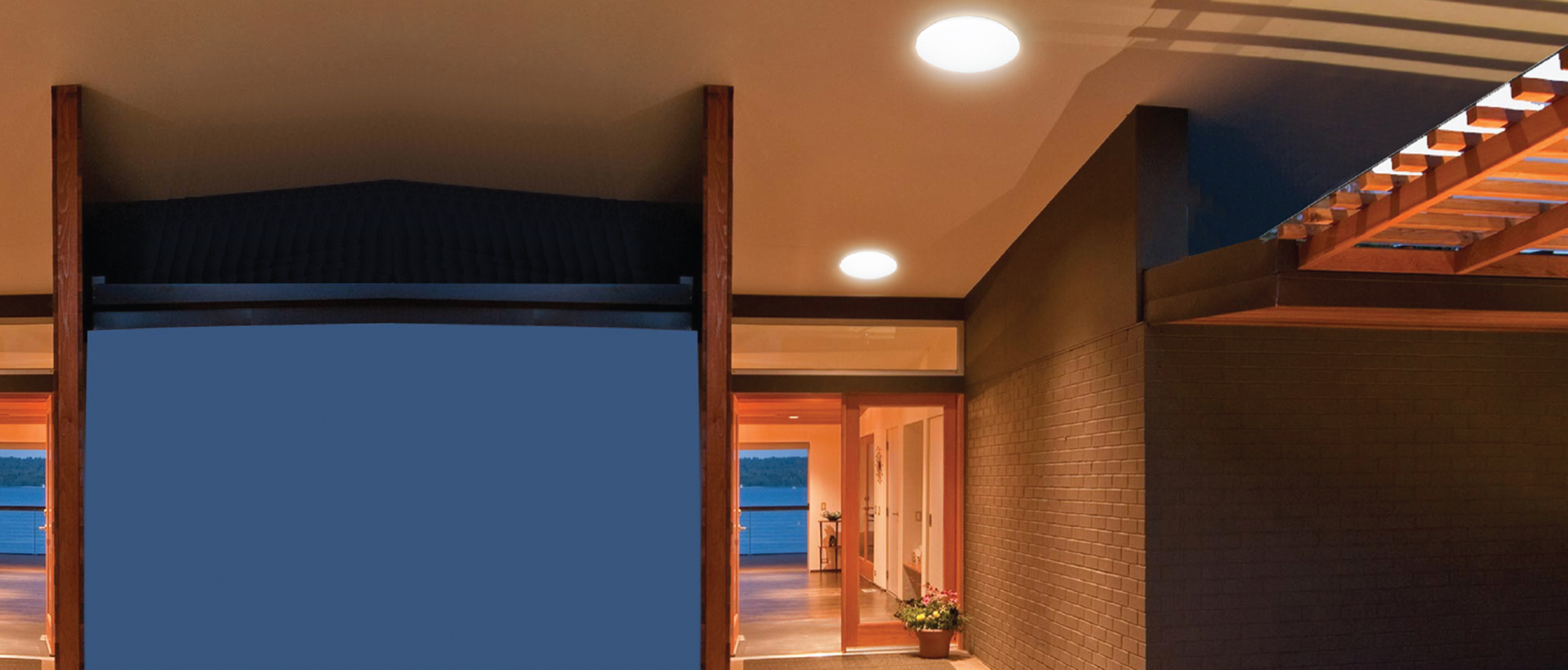

Lobbies & Foyers, Retail Sector, Corridors, Residential, Receptions, Internal passages, Hospitality Industry, Commercial & Business Centers, etc.

Available Finish
White epoxy polyester powder coating.
IDWattageDimensionMounting IESPhotometryTechnical DatasheetTechnical Description

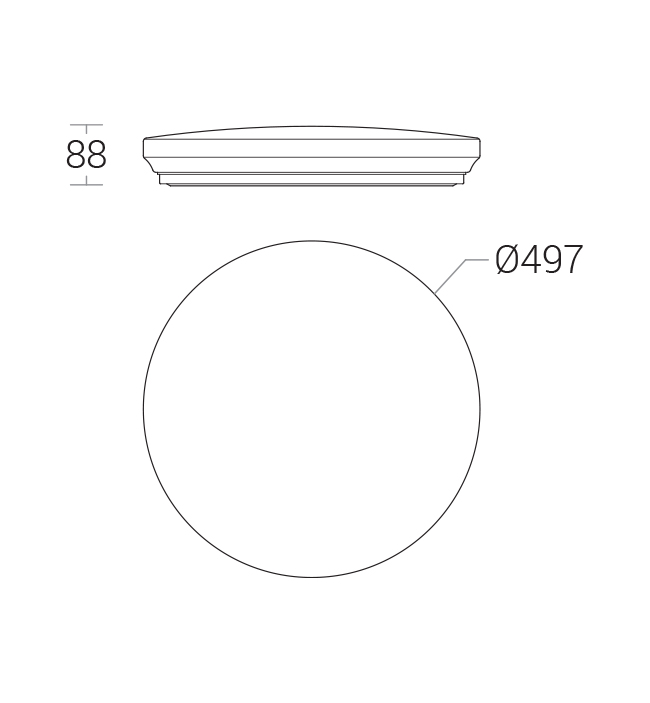

KL-317536W LED WW,NW,CW, Translucent AcrylicØ497 x 88mmKL-3175-BA120°-WW.IES
KL-3175-BA120°-CW.IES
KL-3175-BA120°-NW .IES
KL-3175-BA120°-WW.PDF
KL-3175-BA120°-CW.PDF
KL-3175-BA120°-NW .PDF
3175.pdf
KL-317436W LED WW,NW,CW, Translucent AcrylicØ497 x 88mmKL-3174-BA120°-WW.IES
KL-3174-BA120°-CW.IES
KL-3174-BA120°-NW.IES
KL-3174-BA120°-WW.PDF
KL-3174-BA120°-CW.PDF
KL-3174-BA120°-NW.PDF
3174.pdf
