Keshav

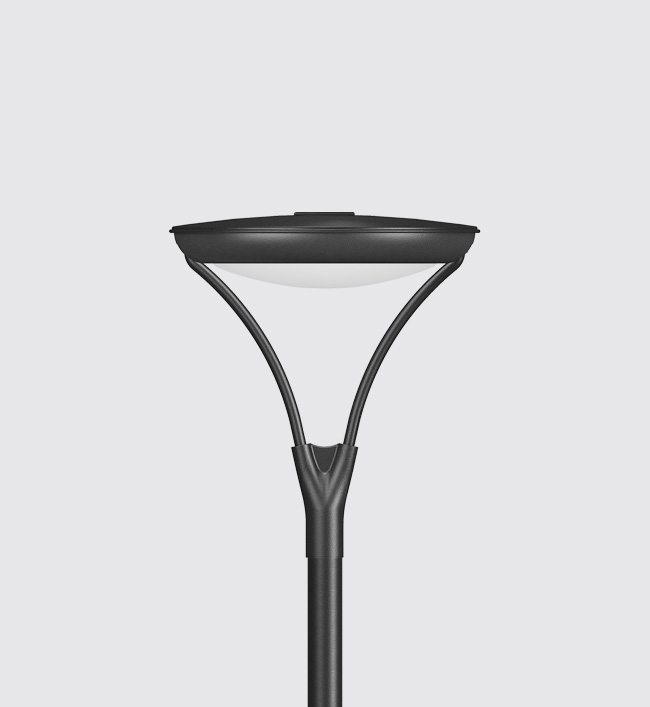

A modern heritage post top luminaire upgraded with high performance light engines.Aesthetically designed sturdy construction ensures a long life against all weather condition,maintaining initial performances through the lifetime of the installation.
Designed for highest efficiency in terms of more lumens at reduced wattages.Product offered in asymmetrical light distribution.

Product Description
• The luminaire housing made of spun aluminium top cover and die cast aluminium bottom cover with supporting arm.
• The module along with driver is housed inside and covered with diffuser.
• Non yellowing UV stabilized clear acrylic diffuser.
• Luminaire integrated with 50W / 100W LED.
• Die cast aluminium mounting base.
• Suitable for mounting on 50mm OD pipe.
• Cable entries for through-wiring of mains supply cable.
• Integral constant current power supply.
• CRI ( Ra) : >70.
• Prewired with LED driver and suitable for operating on 240V,50Hz single phase ac supply.
• Ordering guide : KL-5384-CCT (Colour Temperature)
• Available CCT : 3000K,4000K,5700K.

Product Benefits
• High luminous efficiency at reduced wattage.
• Elegance,Functionality.
• Environmental friendly,moisture proof,insect free.
• Dark sky compliant protects pedestrians from glare, in addition to preventing spill light above the horizontal plane.
• Sustainable LED technology offers durability and optimal light output with low power consumption.

Area of Application

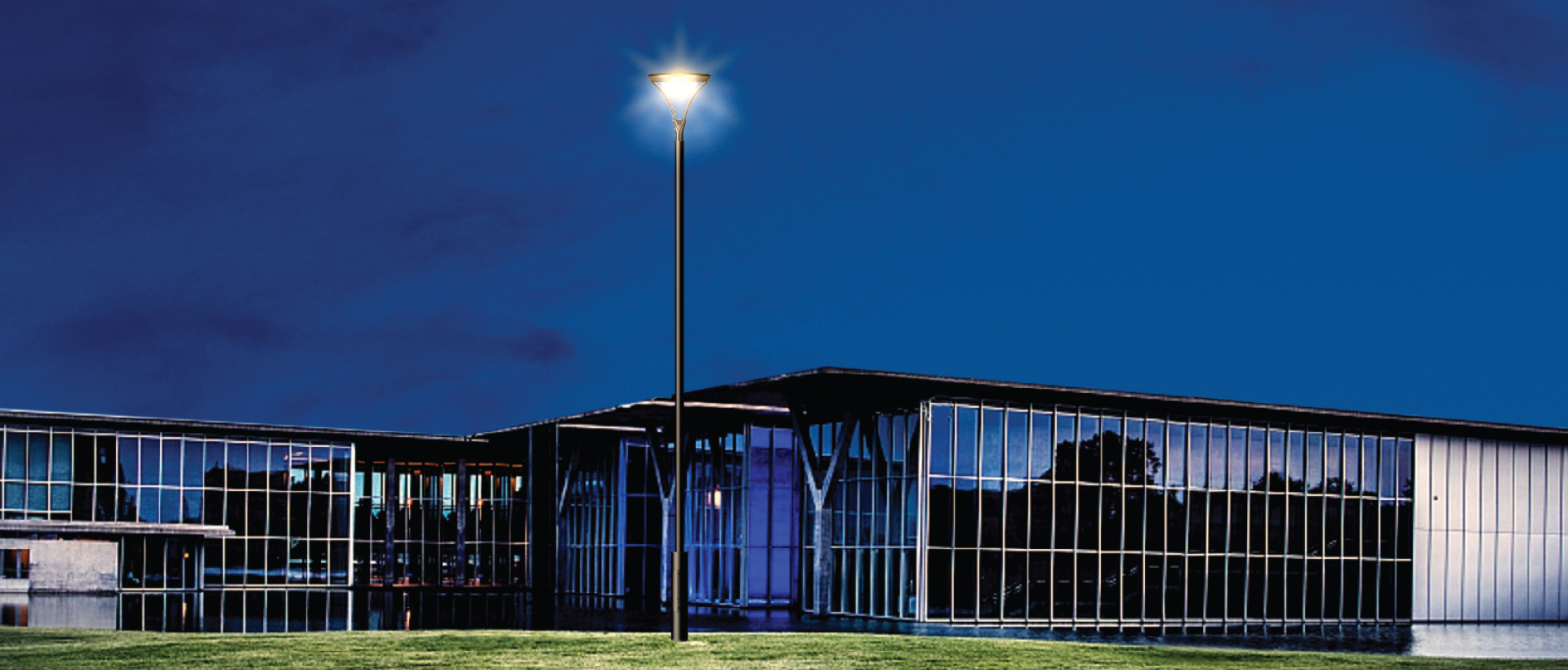

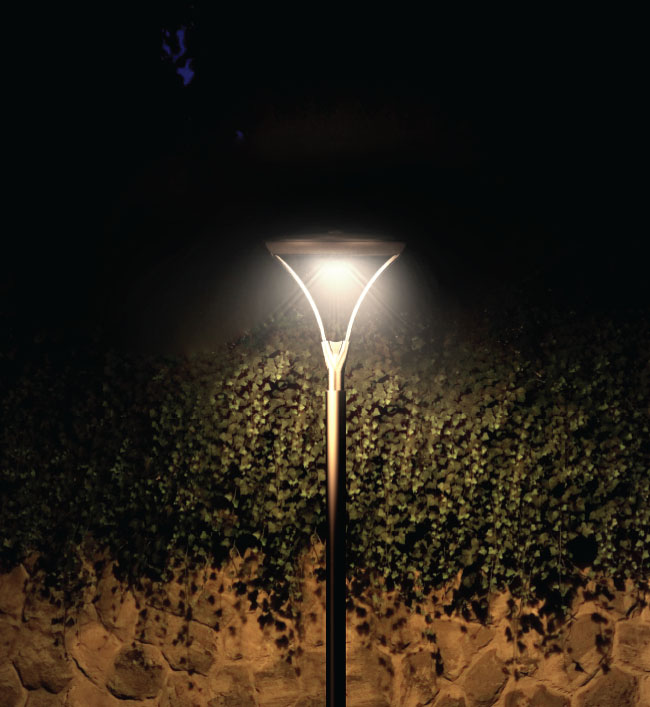

Illuminating parks,Gardens,Commercial complex,Residential roadways,Walkways,Streetscapes & office complex.

Available Finish
Pure polyester powder coated
• Graphite grey
• Anthracite grey
• Jet black.
IDWattageDimensionMounting IESPhotometryTechnical DatasheetTechnical Description

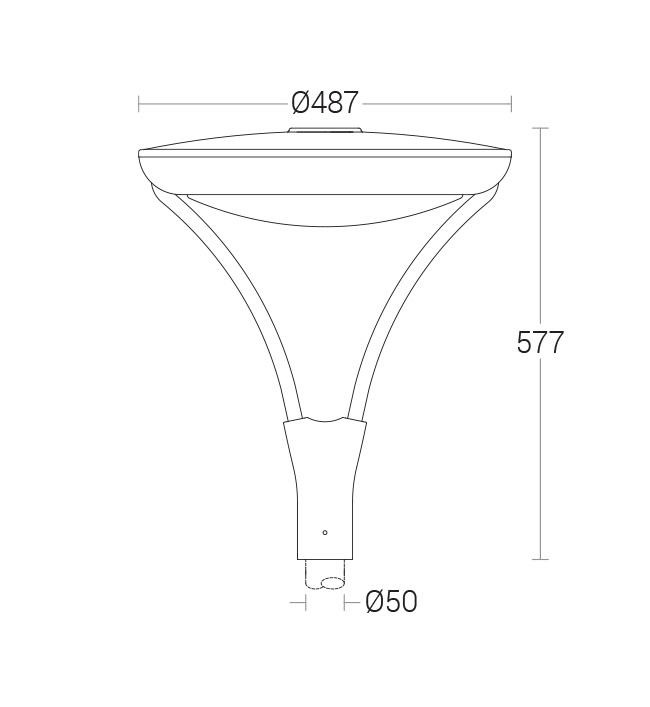

KL-450250W LED 2700K,4000K,5700K BA:Symmetrical, Translucent AcrylicØ487 x 577mmD1
KL-4502.IESKL-4502.PDF4502.pdf
KL-4503100W LED 3000K,4000K,5700K BA:Type IV, Clear AcrylicØ487 x 577mmD1
4503.pdf
KL-538450W LED 3000K,4000K,5700K BA:Type IV, Clear AcrylicØ487 x 577mmD1
KL-5384-BATYPEIII-WW.IES
KL-5384-BATYPEIII-CW.IES
KL-5384-BATYPEIII-NW.IES
KL-5384-BATYPEIII-WW.PDF
KL-5384-BATYPEIII-CW.PDF
KL-5384-BATYPEIII-NW.PDF
5384.pdf
KL-5384.txt
