Nebula

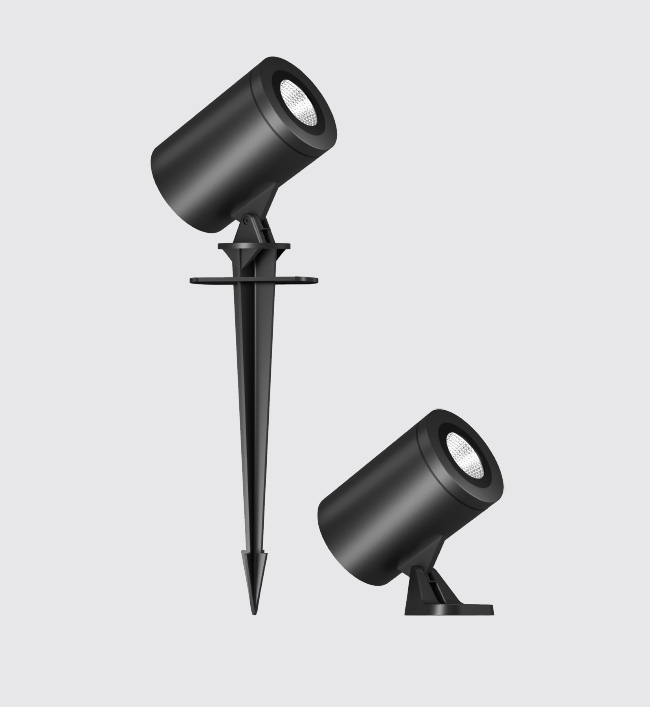

LED compact spot light luminaires designed to provide directional light.The luminaires comes with a connecting cable and an earth spike for portable installation or bracket for permanent installation on a wall,under a ceiling or on a column.

Product Description
• Luminaire made of extruded aluminium alloy (grade 6063) with pressure die cast aluminium components and non corrosive stainless steel fasteners.
• Clear toughened glass.
• Mounting earth spike or die-cast aluminium bracket arrangement to facilitate easy installation at any desired location.
• Swivel range of 0°-90°.
• Luminaire supplied with 0.5 metre cable length and a IP67 connector.
• Silicone gasket.
• Cable entries for through-wiring of mains supply cable.
• Integral constant current power supply.
• CRI (Ra) : >80.
• Prewired with LED driver and suitable for operating on 240V,50Hz single phase ac supply.
• Ordering guide : KL-4270-CCT (Colour Temperature)
• Available CCT : 2700K / 4000K.

Product Benefits
• Sturdy construction in order to maintain performance of the luminaire and to reduce maintenance costs.
• Quick & simple installation.
• Clear glass in the front with continuous rubber gasket to ensure adequate sealing against ingress of moisture,dust,insects etc.,
• Sustainable LED technology offers durability and optimal light output with low power consumption.

Area of Application

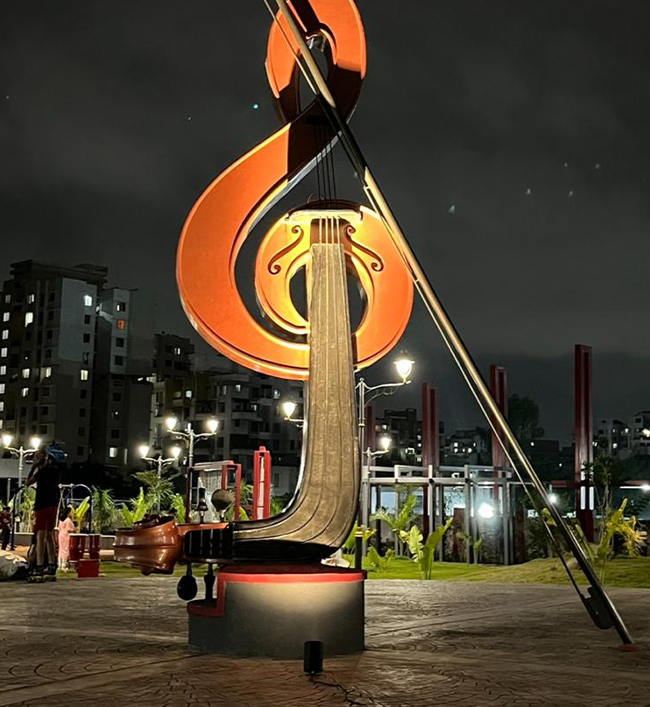

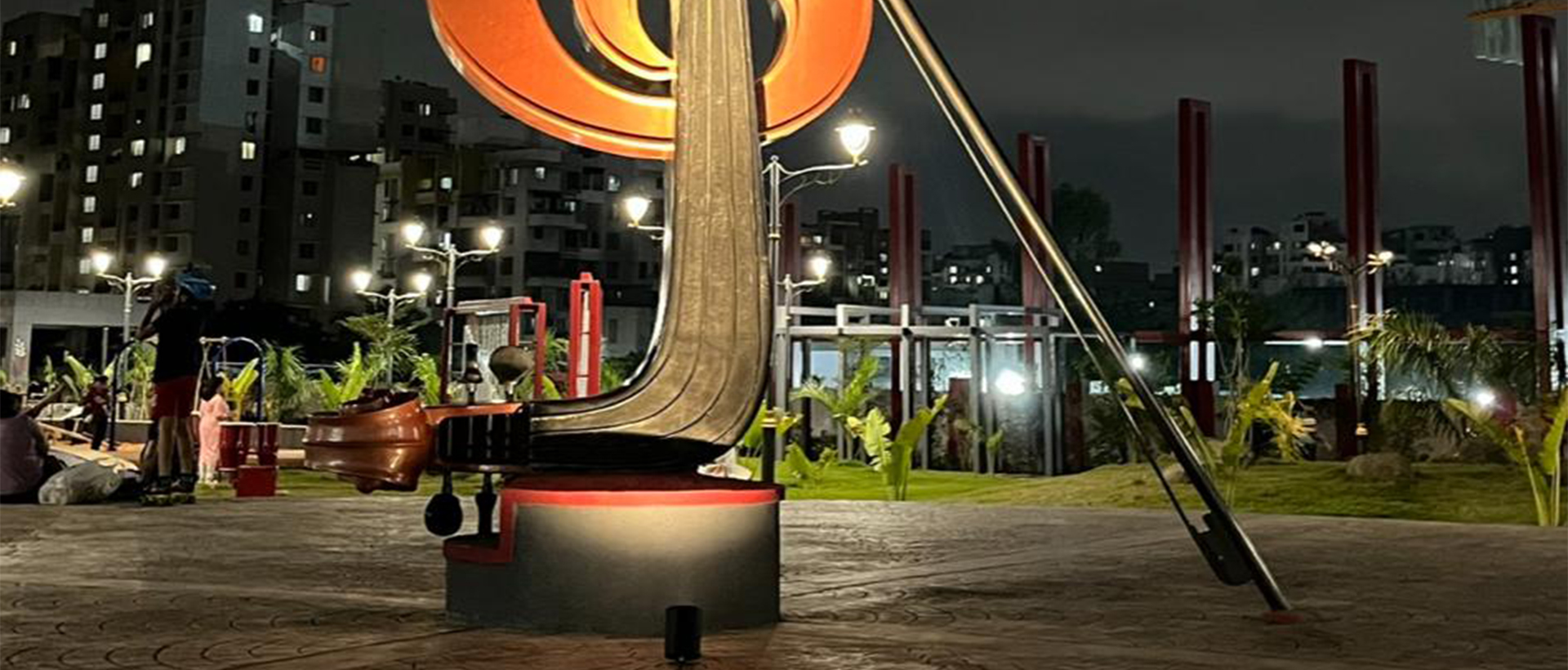

Pathways,Parks,Sculptures,Gardens,Structures and Landscape lighting.

Available Finish
Pure polyester powder coated
• Graphite grey
• Anthracite grey
• Jet black.
IDWattageDimension IESPhotometryTechnical DatasheetTechnical Description
KL-8275Tree Strap Accessory1000mm8275.pdf
KL-8310Anti-Glare Visor AccessoryØ100 x 79mm8310.pdf
KL-8335Honey Comb Louvre AccessoryØ69 x 3.2mm8335.pdf
KL-8323Spill Control Snoot AccessoryØ100 x 125mm8323.pdf
KL-8343Tree Strap Clamp Accessory60 x 30 x 10mm8343.pdf

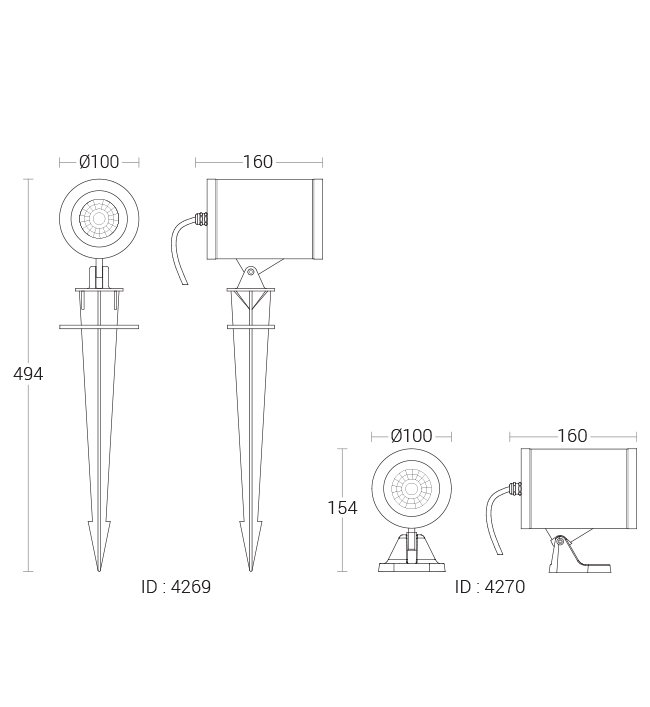

KL-427018W LED 2700K,3000K,4000K BA:25°,40°,15°, Clear Toughened Glass160 x Ø100 x 154mmKL-4270-BA15°-NW.IES
KL-4270-BA15°-WW.IES
KL-4270-BA25°-NW.IES
KL-4270-BA25°-WW.IES
KL-4270-BA40°-ww.IES
KL-4270-BA40°-NW.IES
KL-4270-BA15°-NW.PDF
KL-4270-BA15°-WW.PDF
KL-4270-BA25°-NW.PDF
KL-4270-BA25°-WW.PDF
KL-4270-BA40°-ww.PDF
KL-4270-BA40°-NW.PDF
4270.pdf
KL-4270.txt
KL-426918W LED 2700K,3000K,4000K BA:25°,40°,15°, Clear Toughened Glass160 x 100 x 494mmKL-4269-BA15°-WW.IES
KL-4269-BA15°-NW.IES
KL-4269-BA25°-WW.IES
KL-4269-BA25°-NW.IES
KL-4269-BA40°-WW.IES
KL-4269-BA40°-NW.IES
KL-4269-BA15°-WW.PDF
KL-4269-BA15°-NW.PDF
KL-4269-BA25°-WW.PDF
KL-4269-BA25°-NW.PDF
KL-4269-BA40°-WW.PDF
KL-4269-BA40°-NW.PDF
4269.pdf
KL-4269.txt
