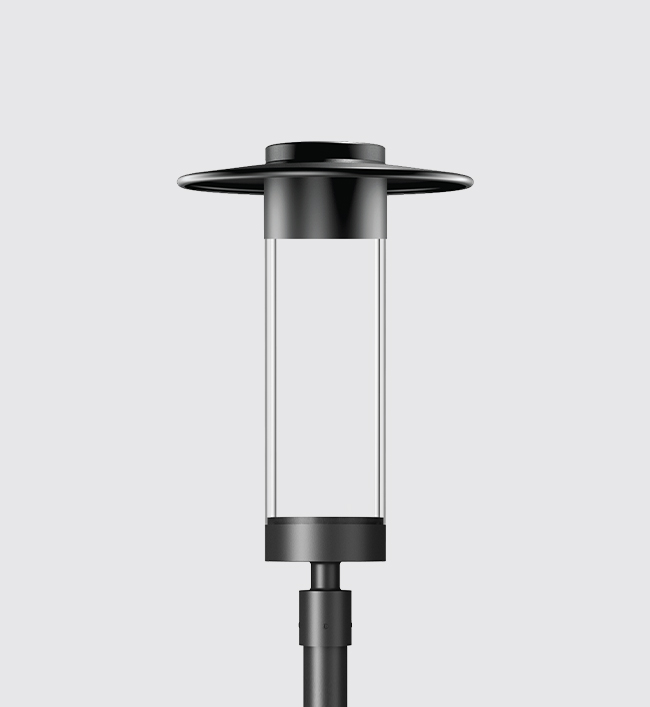

Beacon Lucy
A modern heritage post top luminaire upgraded with high performance light engines.
Aesthetically designed sturdy construction ensures a long life against all weather condition,maintaining initial performances through the lifetime of the installation.
Designed for highest efficiency in terms of more lumens at reduced wattages.

Product Description
• Luminaire made of die-cast aluminium with non corrosive SS fasteners.
• Reflector system made of spun aluminium.
• Clear polycarbonate diffuser.
• Luminaire integrated with 50W LED.
• Die cast aluminium base.
• Luminaires suitable for mounting on 60mm OD pipe.
• Cable entries for through-wiring of mains supply cable.
• Integral constant current power supply.
• Prewired with LED driver and suitable for operating on 240V,50Hz single phase ac supply.
• Ordering guide : KL-4510-CCT (Colour Temperature).
• Available CCT : 2700K, 4000K, 5700K.

Product Benefits
• High luminous efficiency at reduced wattage.
• Elegant,Functionality.
• Environmental Friendly.
• Corrosion resistant and Maintenance free.
• Quick installation and low assembly costs.
• Sustainable LED technology offers durability and optimal light output with low power consumption.

Area of Application

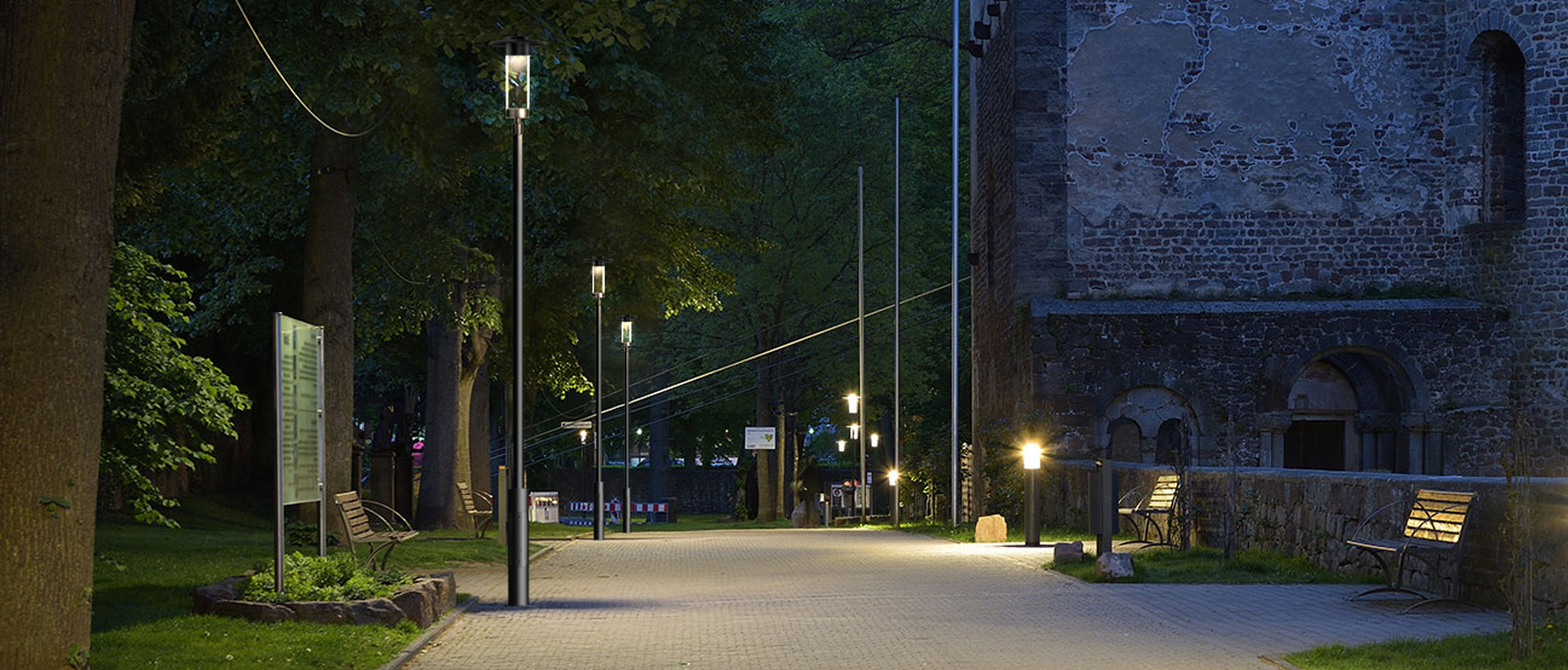

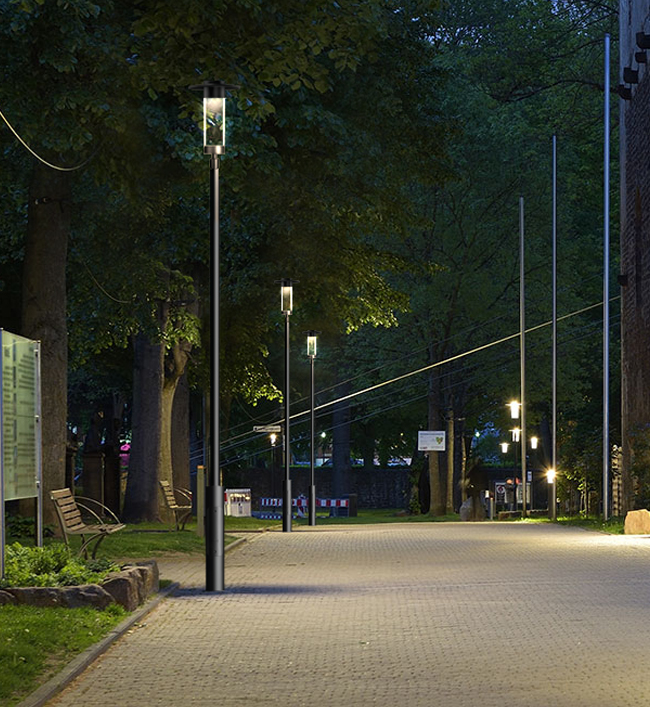

Illuminating parks,Gardens,commercial complex,Residential roadways,Walkways,Streetscapes & office complex.

Available Finish
Pure polyester powder coated
• Graphite grey
• Anthracite grey
• Jet black.
IDWattageDimensionMounting IESPhotometryTechnical DatasheetTechnical Description

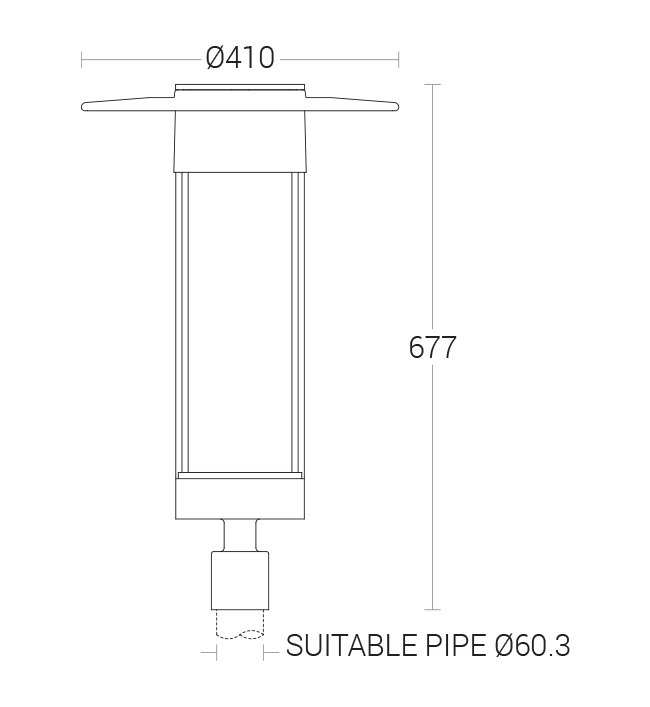

KL-451050W LED 2700K,4000K,5700K, Clear PolycarbonateØ410 x 677mmD2
KL-4510.IESKL-4510.PDF4510.pdf
KL-4510.txt
