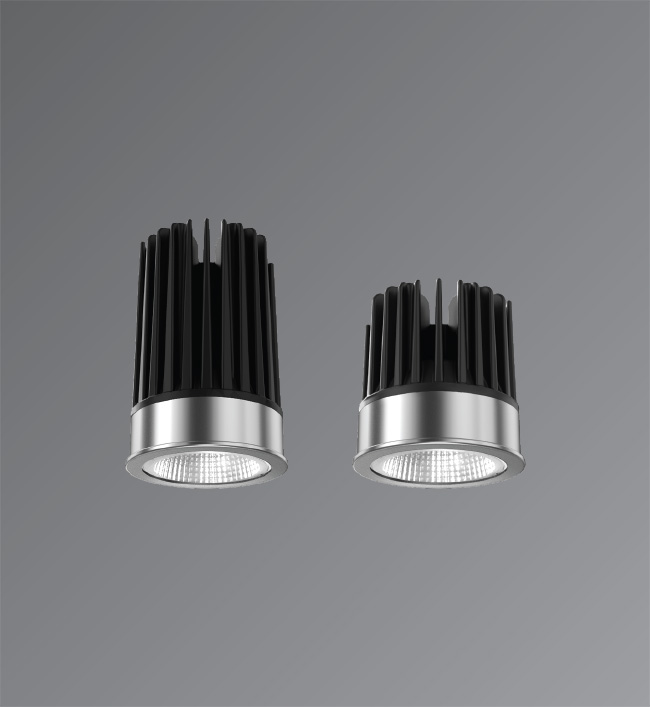

Trisha - LED Modules
Product Description
• Trisha LED down lighter series is the perfect fit for recessed lighting applications.
• The housing is constructed from die-cast aluminium for better thermal management and finished with white epoxy polyester powder coating.
• Interchangeable LED optic Lens / Reflector options.
• Die-cast aluminium trim for varied applications.
Note : Luminaire housing to be ordered with required LED module.

Product Benefits
• Countless configurations available in multiple sizes and wattage options.
• Designed for highest efficiency with CRI>80.
• Versatile, Efficient and Aesthetics all in one.
• Modern timeless design in high quality.
• Flexible deployment options with a wide spectrum of applications.

Modular Lighting System
Modular lighting system with interchangable light source, optical accessories and housing for fixed, adjustable and trimless options.

Glare Control
• Optical systems are carefully designed and selected to provide best light quality.
• The glare-control cutoff allows us to keep the LED from view and enhances your lighting experience.

Optimal Thermal Management
Effective heat dissipation is critical for long-term LED performance hence all luminaires are designed to produce 70% of initial light output with no perceived decay in colour temperature and lumen delivery.

Interchangeable Optics
Modular optics which allows field-interchangeable, tool-free reflectors with spot, medium and wide beam options. Optics can be easily applied to many luminaires across our product lineup.

Colours
Colour trims provide unique appearance, creating new possibilities for designing ceiling space. This feature also soften the light for viewing comfort. Many recess LED downlights feature this unique option.

Downloads
Catalogue Page

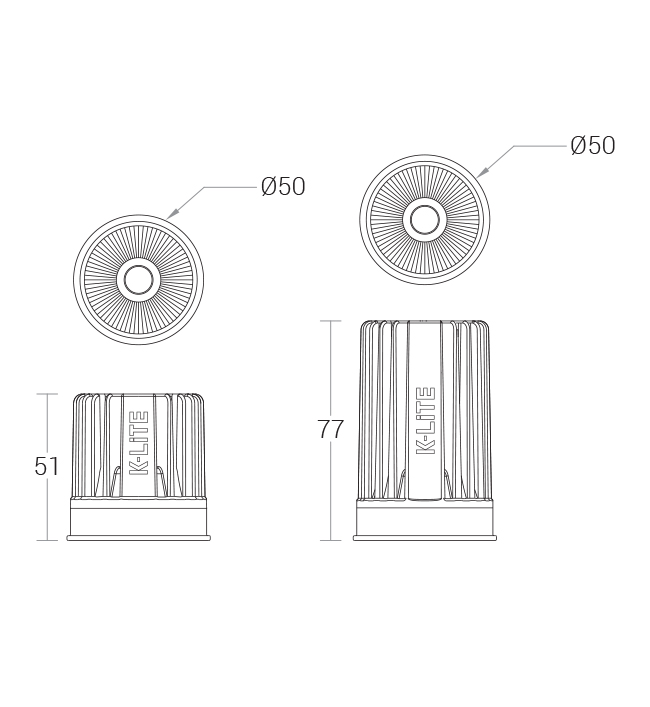

IDWattageDimensionMounting IESPhotometryTechnical DatasheetTechnical Description
KL-817812W LED 2700K,3000K,4000K,6500K BA:15°,25°,38°,60°, Clear PolycarbonateØ50 x 77mmKL-8178.IES
KL-8178.IES
KL-8178.PDF
KL-8178.PDF
8178.pdf
KL-835212W LED 2700K,3000K,4000K,6500K BA:15°, 25°,38°,60°, Clear PolycarbonateØ50 x 77mm8352.pdf
KL-81777W LED 2700K,3000K,4000K,6500K BA:15°,25°,38°,60°, Clear PolycarbonateØ50 x 51mmKL-8177.IES
KL-8177.IES
KL-8177.IES
KL-8177.PDF
KL-8177.PDF
KL-8177.PDF
8177.pdf
KL-83517W LED 2700K,3000K,4000K,6500K BA:15°,25°,38°,60°, Clear PolycarbonateØ50 x 51mm8351.pdf
