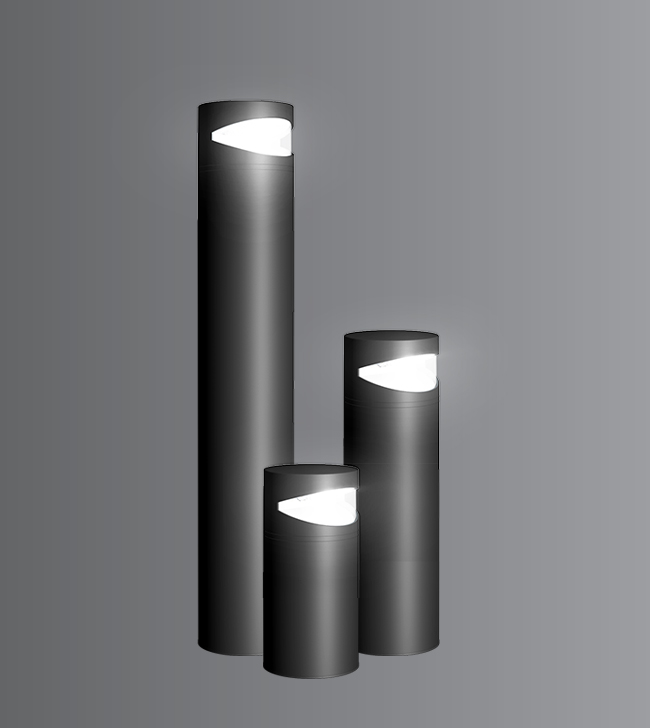

Ajna Slice Bollard
These environmentally friendly LED garden and pathway luminaires,create a pleasant light distribution with a high degree of visual comfort.These luminaries offer shielded glare free illumination on ground surface and are perfect for illuminating entrances,footpaths as well as garden and landscape architecture.Clean Lines and pure form are the underlying elements of this series of LED bollards,designed to provide radially asymmetric light emission of 180°.

Product Description
• Luminaire made of extruded aluminium alloy (grade 6063) with die-cast aluminium components and non corrosive SS fasteners.
• Shielded light source .
• For optimum illumination,these luminaires can be supplied in three different heights.
• Reflector system made of spun aluminium (powder coated white).
• Non yellowing UV stabilized clear polycarbonate diffuser.
• Silicone gasket.
• Mounting plate Die cast aluminium double powder coat with an anchorage unit and stainless steel fixing screws.
• Luminaire can be aligned on the mounting plate around 360°.
• Cable entries for through-wiring of mains supply cable.
• Integral constant current power supply.
• CRI (Ra) : >80 (90 CRI - On Request)
• Prewired with LED driver and suitable for operating on 240V,50Hz single phase ac supply.
• Ordering guide : KL-4731-CCT (Colour Temperature)
• Available CCT : 2700K, 4000K, 5700K.

Product Benefits
• High luminous efficiency at reduced wattage.
• Elegant,Robust design.
• Dark sky compliant protects pedestrians from glare by preventing spill light above the horizontal plane.
• Sustainable LED technology offers durability and optimal light output with low power consumption.

Area of Application

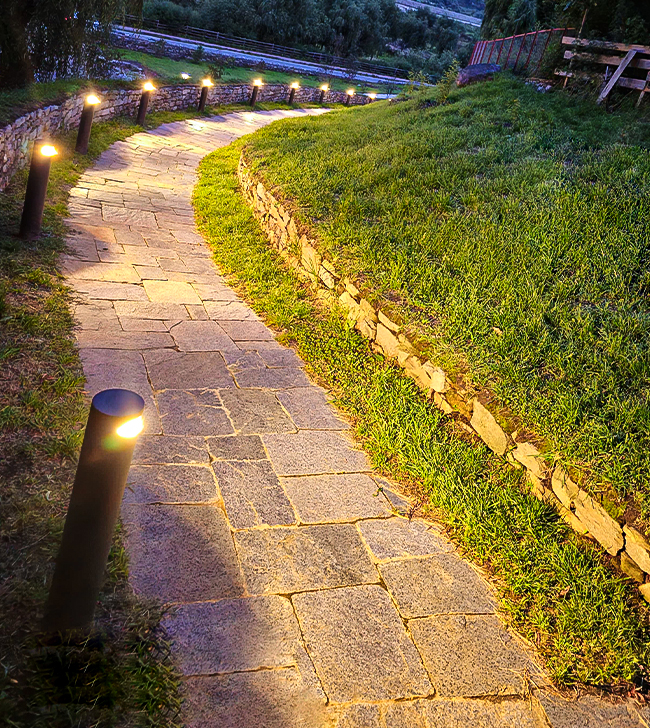

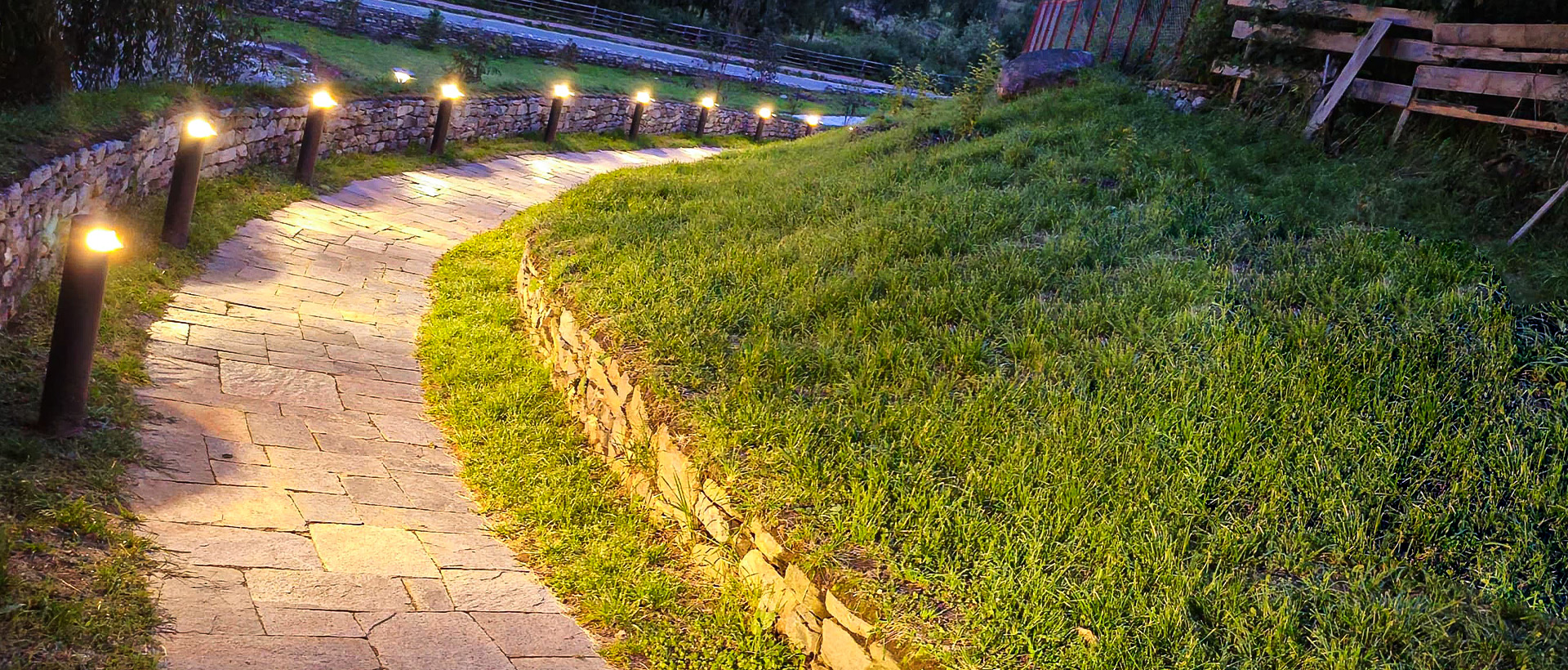

Suitable for Residential & Public areas for Illuminating Driveways,Pathways,Flowerbeds,Entrances,Squares,Gardens and as well as landscape architecture.

Available Finish
Pure polyester powder coated
• Graphite grey
• Anthracite grey
• Jet black.

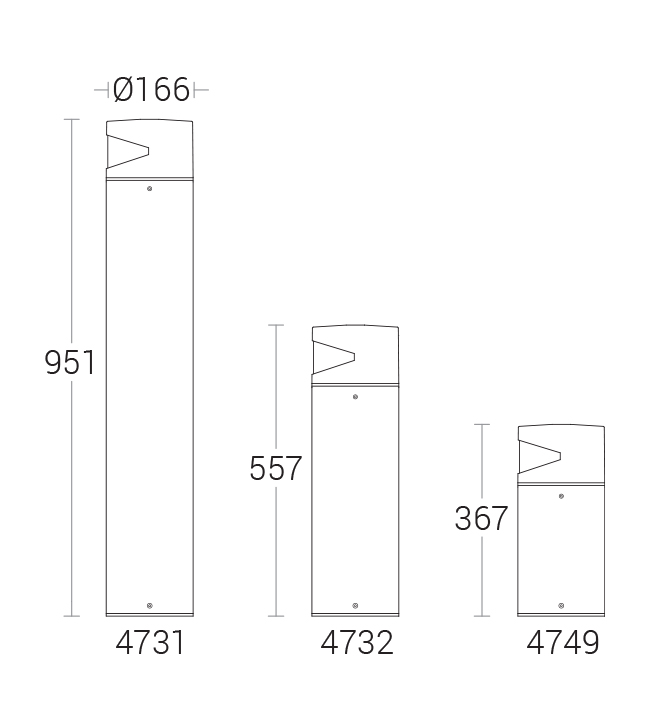

IDWattageDimensionMounting IESPhotometryTechnical DatasheetTechnical Description
KL-474912W LED 2700K,4000K,5700K, Clear PolycarbonateØ166 x 290mmM3
Detailed Foundation Drawing
KL-4749-BA--WW.IES
KL-4749-BA--WW.PDF
4749.pdf
KL-473212W LED 2700K,3000K,4000K,5700K, Clear PolycarbonateØ166 x 487mmM3
Detailed Foundation Drawing
KL-4732-BA--WW.IES
KL-4732-BA--WW.PDF
4732.pdf
KL-473112W LED 2700K,4000K,5700K, Clear PolycarbonateØ166 x 952mmM3
Detailed Foundation Drawing
KL-4731-BA--WW.IES
KL-4731-BA--WW.PDF
4731.pdf
