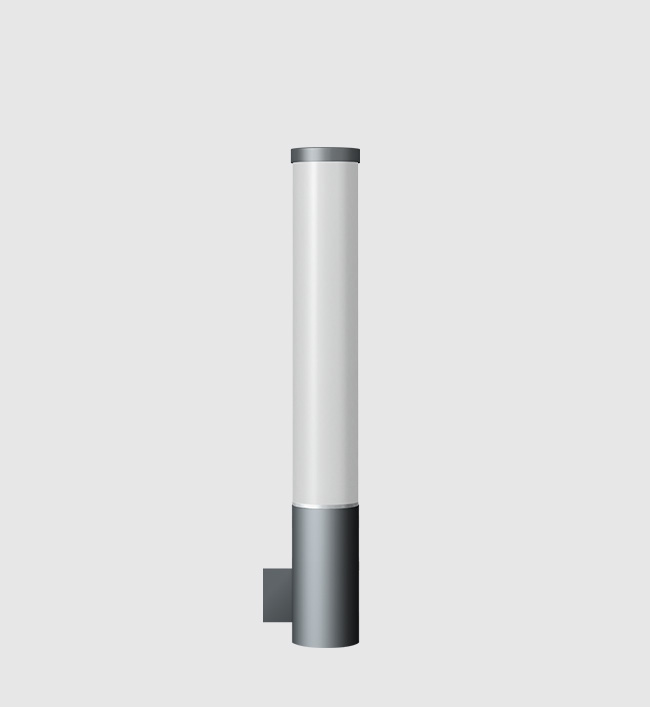

Slimmy Torch
Surface mounted range of LED wall lights are a perfect fit for varied outdoor lighting applications.Designed to illuminate the wall and surface in front of wall and for light accents on vertical surfaces.Aesthetically designed sturdy construction ensures a long life against all weather condition,maintaining initial performances through the lifetime of the installation.

Product Description
• Luminaire body made of extruded aluminium alloy (grade 6063) with die cast aluminium components and non corrosive SS fasteners.
• Non yellowing UV stabilized polycarbonate diffuser.
• Luminaire integrated with 24W LED.
• Die-cast aluminium mounting base for easy installation onto the wall.
• Surface mounting on wall using hardware after connecting to the power supply.
• Cable entries for through-wiring of mains supply cable.
• Integral constant current power supply.
• CRI ( Ra) : >80 (90 CRI - On Request).
• Prewired with LED driver and suitable for operating on 240V,50Hz single phase ac supply.
• Ordering guide : KL-4756-CCT (Colour Temperature).
• Available CCT : 3000K, 4000K, 5700K.

Product Benefits
• High luminous efficiency at reduced wattage.
• Functionally versatile,strong and stable.
• Corrosion resistant and Maintenance free.
• Quick installation and low assembly costs.
• Dark sky compliant protects pedestrians from glare by preventing spill light above the horizontal plane.
• Sustainable LED technology offers durability and optimal light output with low power consumption.

Area of Application
Residential,Building facade,Commercial centres,Passages,Pathways,Sculptures and Structures.

Available Finish
Pure polyester powder coated
• Graphite grey
• Anthracite grey
• Jet black.
IDWattageDimensionMounting IESPhotometryTechnical DatasheetTechnical Description

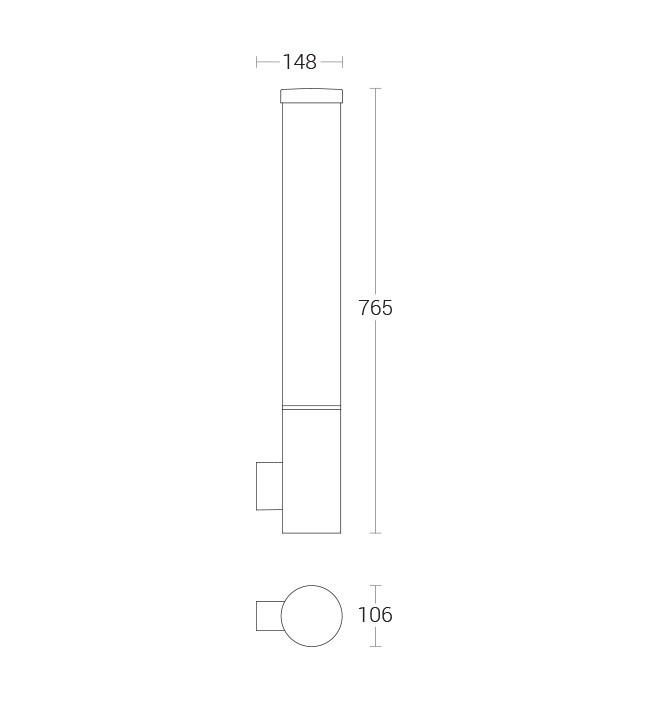

KL-475624W LED WW,NW,CW, Translucent Polycarbonate148 x 105 x 765mmW32
Detailed Foundation Drawing
KL-4756-BA--WW.IES
KL-4756-BA--CW.IES
KL-4756-BA--NW.IES
KL-4756-BA--WW.PDF
KL-4756-BA--CW.PDF
KL-4756-BA--NW.PDF
4756.pdf
