In-Form-33 Slim

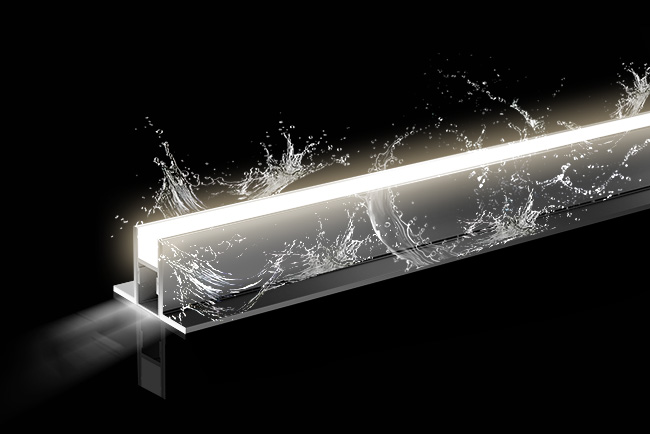

Our IP67 profiles are modular and offers an innovative lighting solution in constrained space which require linear lighting.The profiles are made of extruded aluminium and stainless steel mounting tray. The aluminium profile and the polyurethane encapsulation lends to IP67 protection class.Various mounting options are available making it a versatile product for various applications.

Product Description
• Luminaire made of extruded aluminium profile (grade 6063) with stainless steel mounting tray.
• Translucent polyurethane encapsulation.
• Mounting tray for better cable management with slide fit system.
• Suitable for recess mounting.
• IP67 connector on both ends and can be easily installed via mounting tray.
• Constant voltage LED driver 24Vdc Non integral (to be ordered with suitable power supply).
• Multiple lengths available.
• Available CCT : 2700K, 3000K, 4000K, RGBW, RGBW Pixel (Special colours on request).

Product Benefits
• Attractive high quality robust housing.
• Sturdy construction in order to maintain performance of the luminaire.
• Quick & simple installation.
• Flexible deployment options with a wide spectrum of applications.

Area of Application

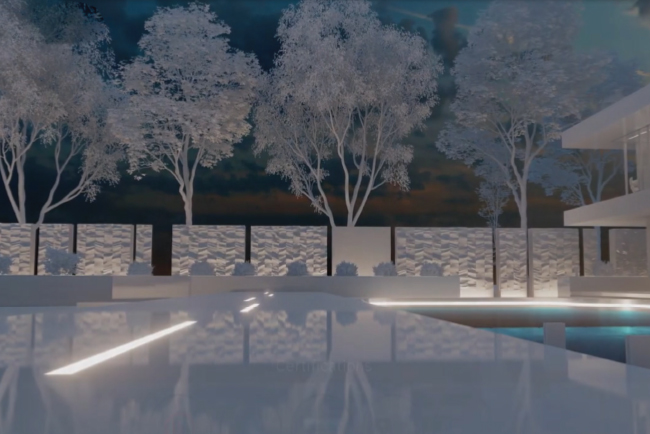

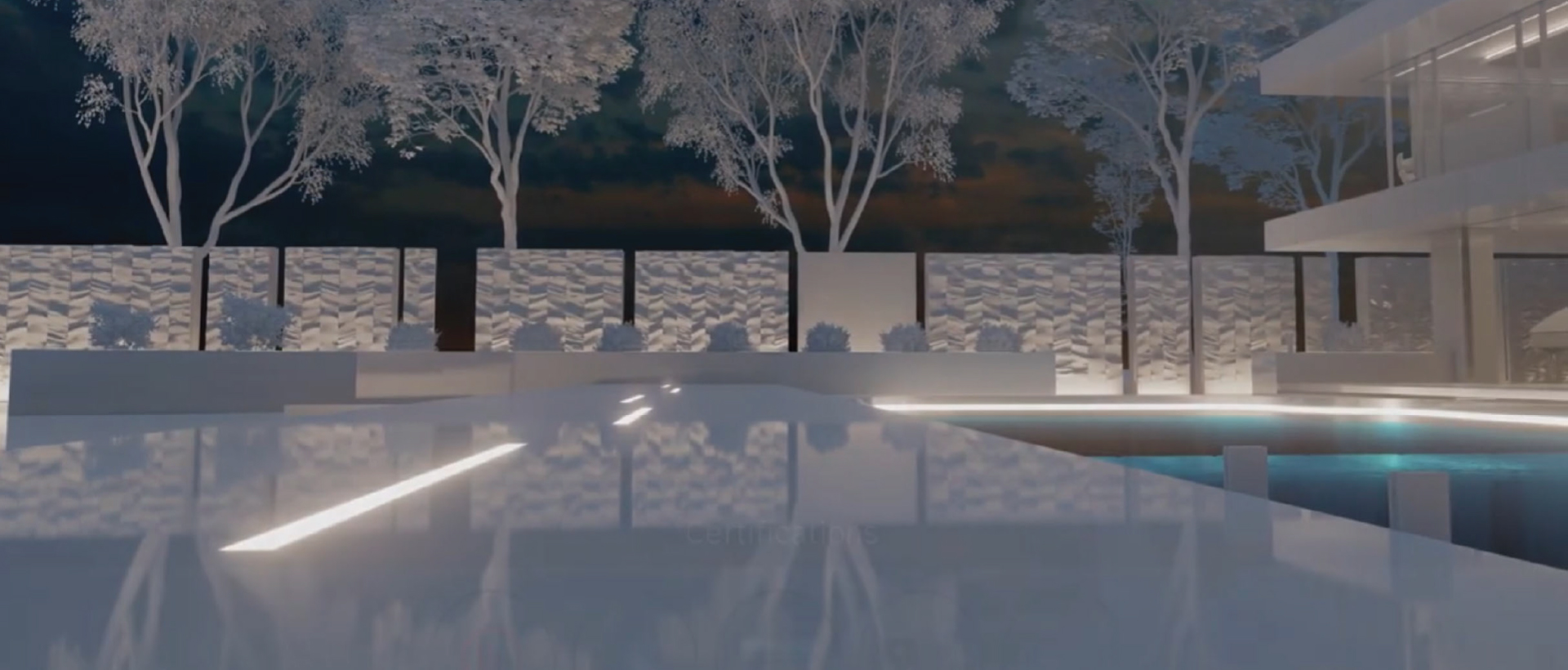

Hotel & Resorts, Malls, Shopping Complex, Commercial & Business Centers, Residential Lighting and similar applications.

Downloads
Catalogue Page
IDWattageDimensionMounting IESPhotometryTechnical DatasheetTechnical Description
KL-8319Accessorie
KL-8322Accessorie1000mm
KL-8321Accessorie500mm
KL-8320Accessorie500mm
KL-362220W LED 2700K,3000K,4000K,5700K BA:120°, Translucent Polyurethane Encapsulation1000 x 80 x 40mm3622.pdf
KL-362330W LED 2700K,3000K,4000K,5700K BA:120°, Translucent Polyurethane Encapsulation1500 x 80 x 40mm3623.pdf
KL-362440W LED 2700K,3000K,4000K,5700K BA:120°, Translucent Polyurethane Encapsulation2000 x 80 x 40mm3624.pdf
KL-362110W LED 2700K,3000K,4000K,5700K BA:120°, Translucent Polyurethane Encapsulation500 x 80 x 40mm3621.pdf
