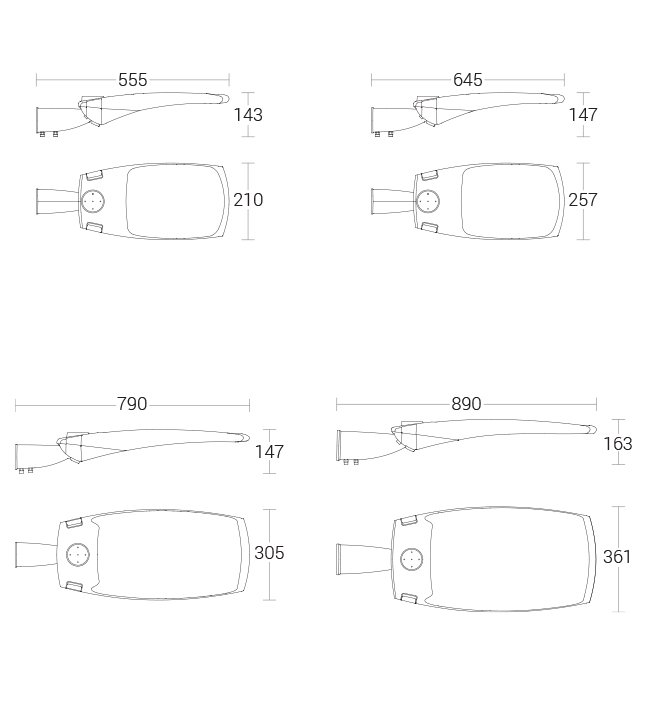

Waco Pro encompasses design,visual comfort,performance,energy savings in a single street lighting system.Waco Pro comes in four different sizes,together with an adjustable inclination joint that guarantees maximum flexibility.
Product Description• Housing and front frame made of die-cast aluminium (ADC12) featuring high strength and anti corrosion.
• Separate optical & driver compartment for tool less maintenance.
• Clear toughened glass diffuser.
• High light transmittance optical lens for various applications.

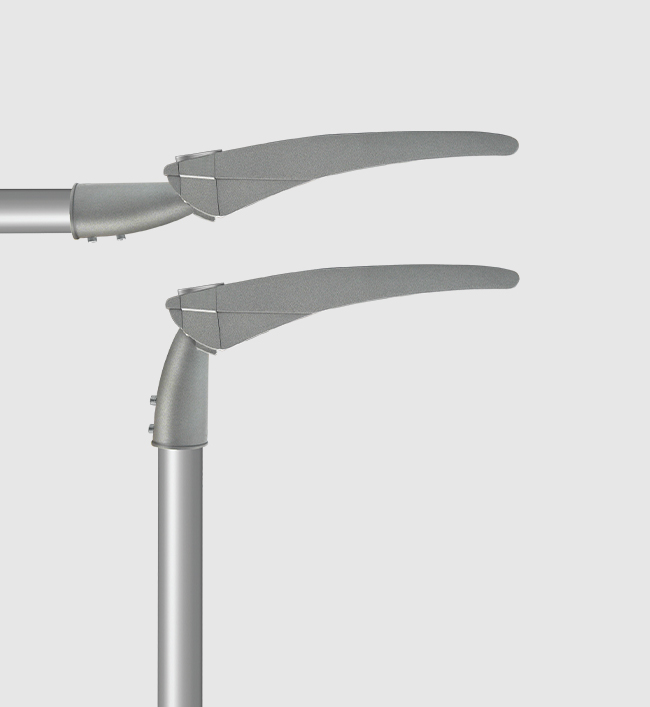

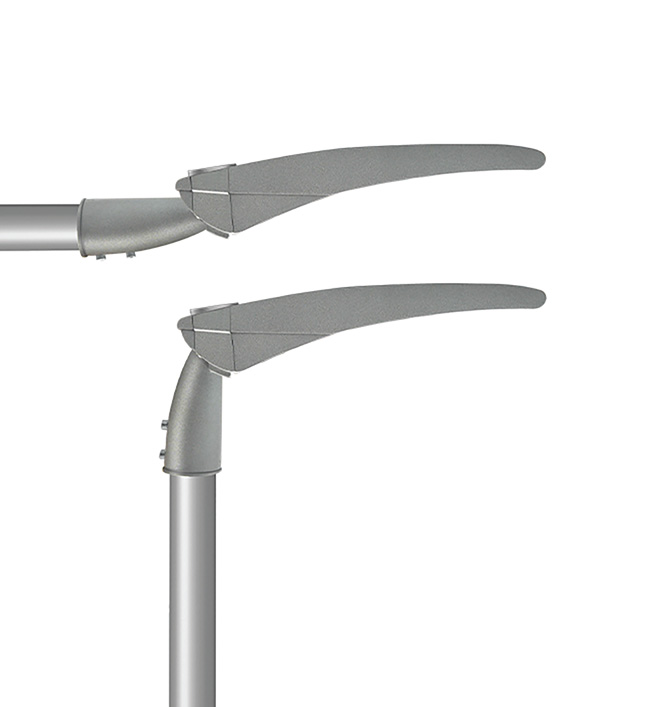

• Suitable for mounting on to 60 mm dia pipe at lateral (side entry) and vertical (top mount) with adjustable angle -15° to +15°.
• Cable entries for through-wiring of mains supply cable.
• Integral constant current power supply.
• CRI (Ra) : >70 (>80 On Request).
• Prewired with LED driver and suitable for operating on 240V,50Hz single phase ac supply.
• Ordering guide : KL-4328-CCT (Colour Temperature)
• Available CCT : 2700K,3000K,4000K,5700K.
Product Benefits• High luminous efficiency at reduced wattage.
• Functionally versatile,stable with sound engineering.
• Corrosion resistant and maintenance free.
• Quick installation and low assembly costs.
• Sustainable LED technology offers durability and optimal light output with low power consumption.
Controls• Dimmable options : Dali / 1-10V / PWM (On Request)
• Smart control management system (On Request).

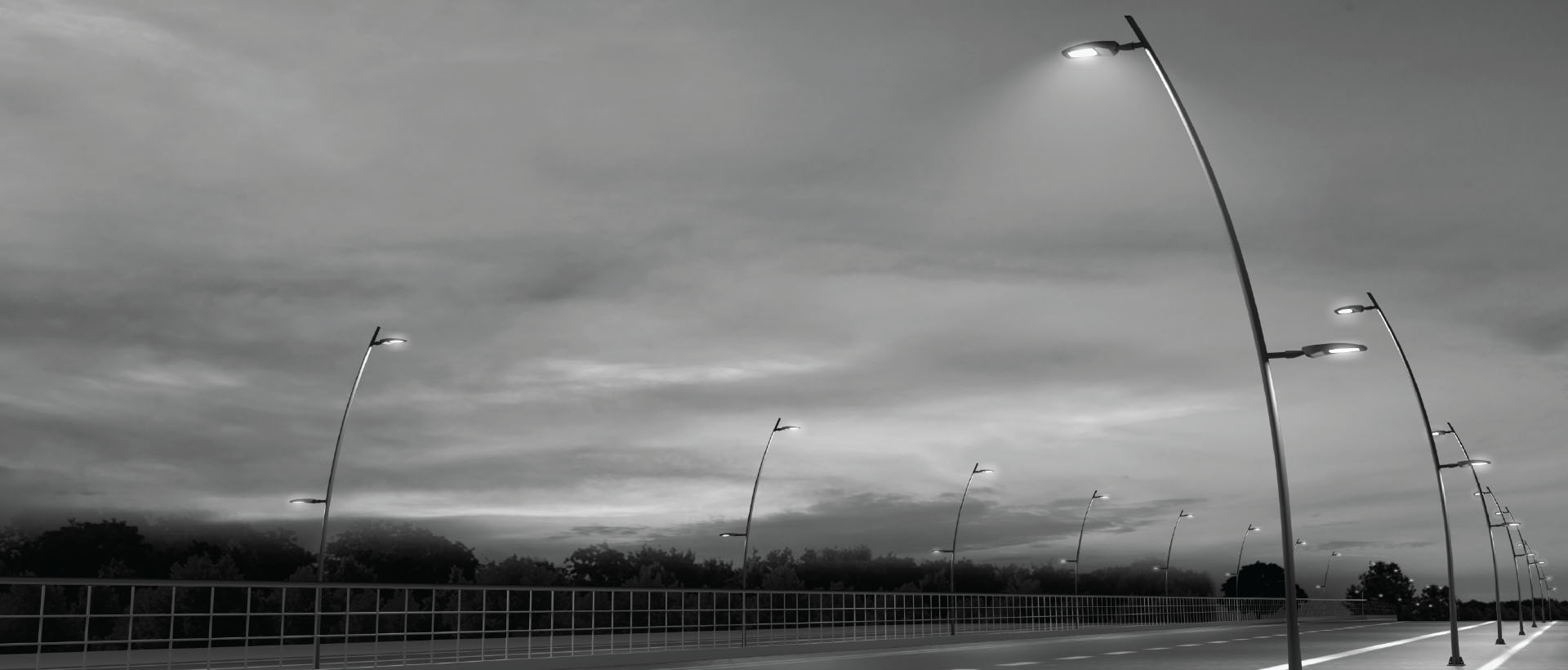

Area of ApplicationRoads and highways,Parking lots and large areas,Roundabouts,Pedestrian and bicycle paths,Pedestrian crossing.
Available FinishPure polyester powder coated
RAL 9004 Signal black
RAL 9007 Grey aluminium
RAL 7016 Anthracite grey
Graphite grey
* (On Request) depends upon the availability and validation of drivers and other accessories.
