Line
Crafted with a focus on exceptional visual comfort, the Line luminaire is designed to excel in creating both orientation and ambiance in outdoor spaces. Whether it's illuminating pathways, driveways, or outdoor seating areas, these luminaries are adept at providing gentle yet effective general ambient light. This capability not only enhances visibility but also contributes to a sense of security and tranquillity during night-time hours. The design of Line luminaries ensures they blend seamlessly into their surroundings while offering reliable performance and aesthetic appeal.

Material
Body : Extruded aluminium alloy (grade 6063)
Impact Protection : IK08
Ingress Protection : IP65
Lens : Polycarbonate optical lens
Optical : Slight regress in the optical assembly for better glare control
Mounting : Suitable for mounting on Ø76mm OD pole

Electrical
Driver : Standard
Power Supply : Integral
Input Voltage : 230-240Vac / 50-60 Hz
Surge : 4KV

Product Configurations
Wattage : 24W / 48W
Light Distribution : Type III Medium
CCT : 3000K / 4000K / 5700K
LED Life Time : L70 B10 60,000 H

Area of Application
Illuminating parks, Gardens, Commercial complex, Pathways in residential buildings.

Available Finish
Pure polyester powder coated
RAL 9004 Signal black
RAL 9007 Grey aluminium
RAL 7016 Anthracite grey

Downloads
Catalogue Page
IDWattageDimensionMounting IESPhotometryTechnical DatasheetTechnical Description

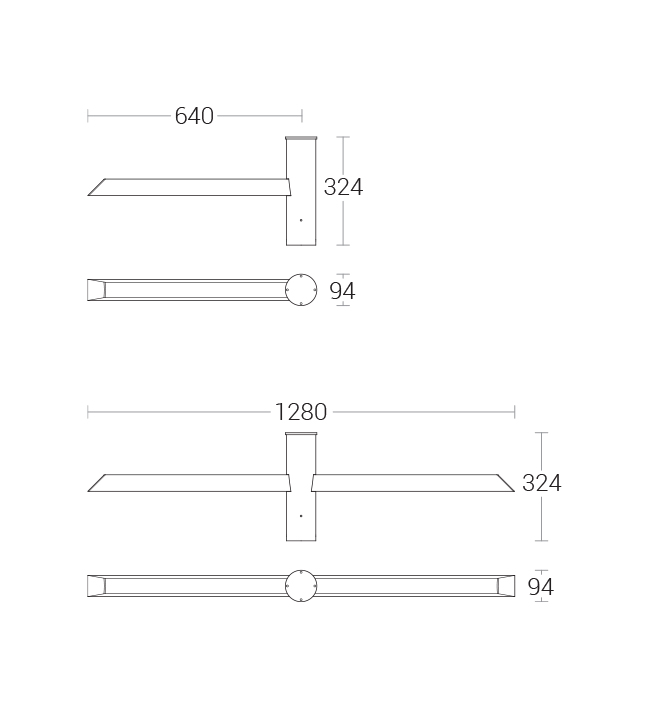

KL-438924W LED 3000K,4000K,5700K BA:Type III Medium, Polycarbonate Optical LensSA : 640 x 94 x 324,DA : 1280 x 94 x 324mmD3
4389.pdf
KL-438348W LED 3000K,4000K,5700K BA:Type III Medium, Polycarbonate Optical LensSA : 900 x 94 x 324,DA : 1800 x 94 x 324mmD26
4383.pdf
