Disk

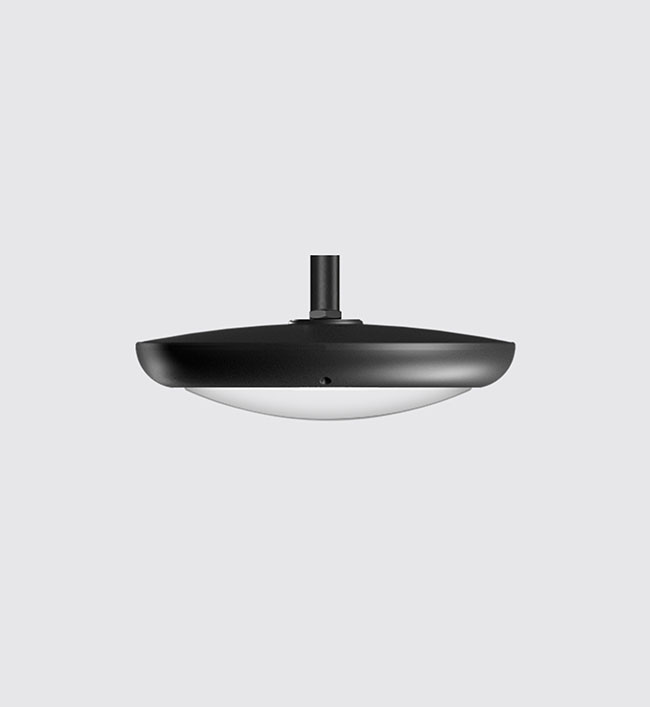

The Disk Street light is a specialized outdoor luminaire designed for durability, aesthetic appeal, and high performance in various environmental conditions. It’s constructed as a single integrated unit, ensuring it is completely weatherproof. This design feature protects it from dust, moisture, and insects, maintaining optimal performance and longevity even in challenging outdoor environments. Offers flexibility with options for both symmetrical and asymmetrical light distribution patterns.

Material
Body : Spun aluminium & Gravity die-cast aluminium
Impact Protection : IK06
Ingress Protection : IP65
Diffuser : Clear acrylic
Gasket : Silicone gasket
Mounting : Internally threaded pipe of designation M30

Electrical
Driver : Standard
Power Supply : Integral
Input Voltage : 230-240Vac / 50-60 Hz
Surge : 6KV

Product Configurations
Wattage : 50W / 100W
Light Distribution : Type II / Type III / Type IV / Symmetrical
CCT : 3000K / 4000K / 5700K
LED Life Time : L70 B10 1,00,000 H

Area of Application

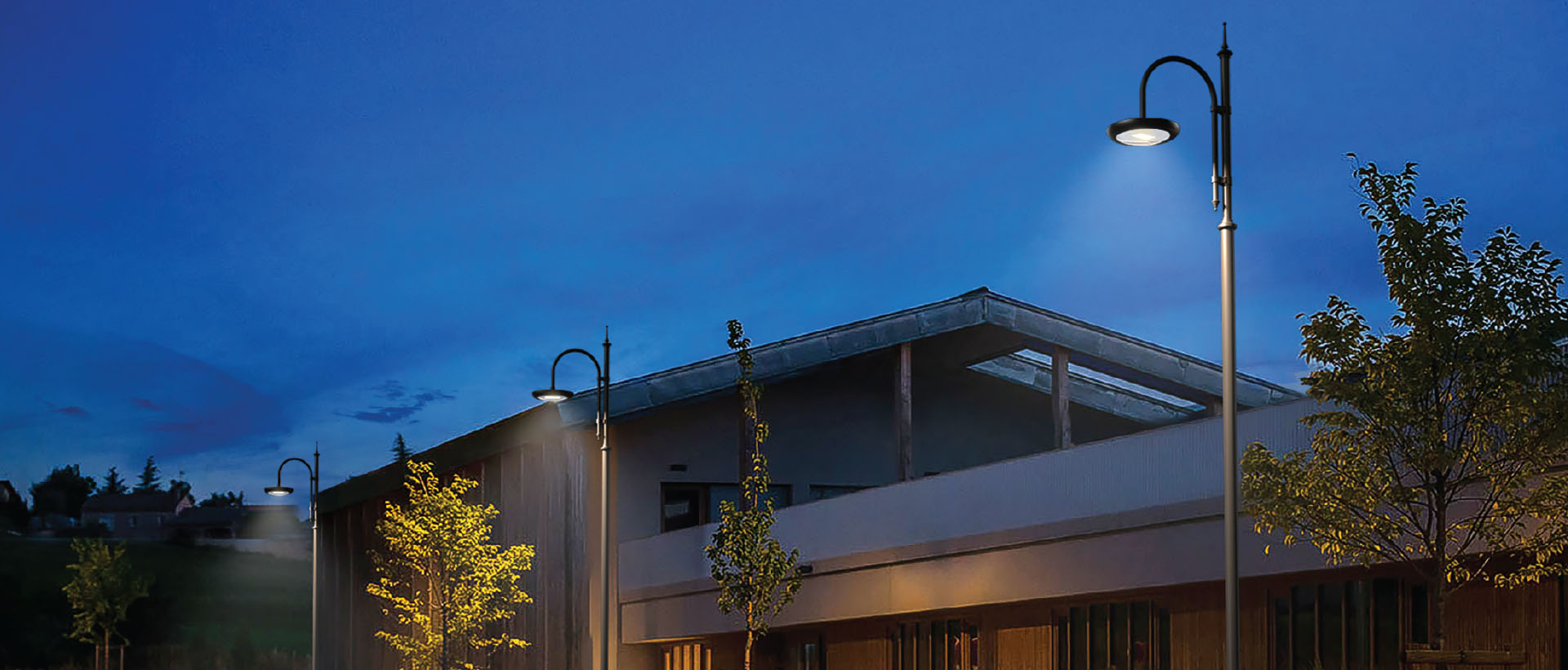

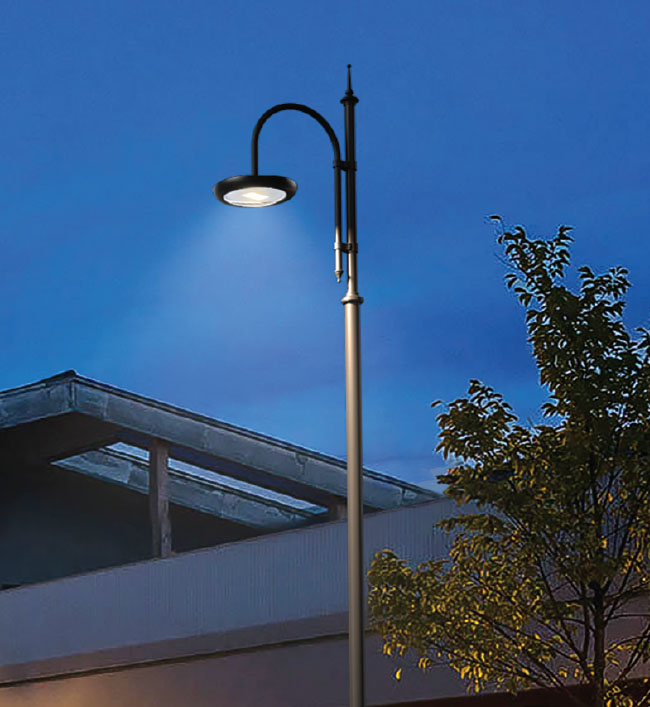

Illuminating parks, Gardens, Street Lighting, Residential roadways, Walkways, Streetscapes & office complex.

Available Finish
Pure polyester powder coated
RAL 9004 Signal black
RAL 9007 Grey aluminium
RAL 7016 Anthracite grey

Downloads
Catalogue Page
IDWattageDimensionMounting IESPhotometryTechnical DatasheetTechnical Description

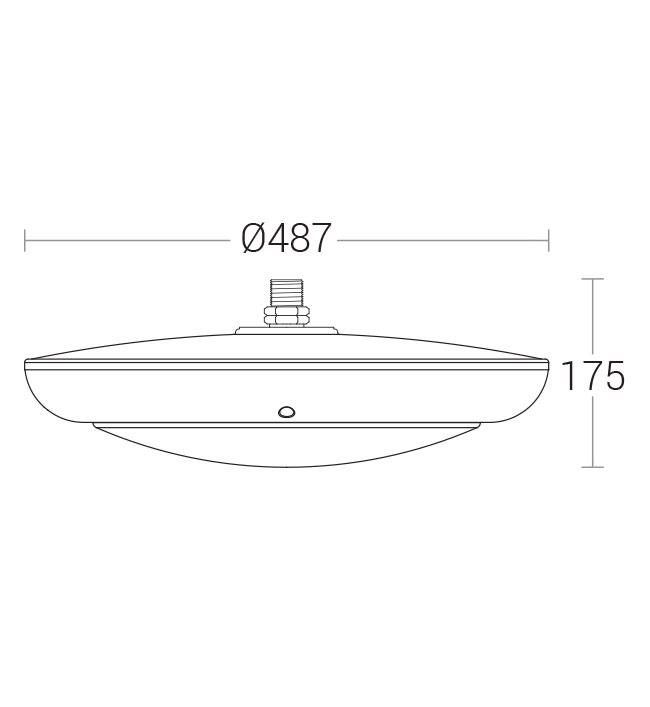

KL-448850W,100W LED 3000K,4000K,5700K BA:TypeII,Type III,Type IV,Symmetrical, Clear AcrylicØ487 x 175mmD4
KL-4488.IES
KL-4488.IES
KL-4488.PDF
KL-4488.PDF
4488.pdf
