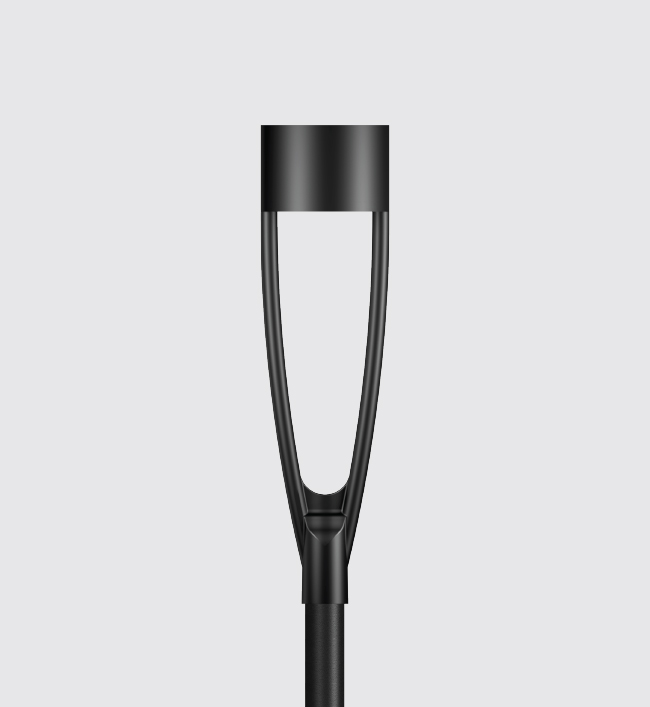

Zucchini
A modern heritage post top luminaire upgraded with high performance light engines.Aesthetically designed sturdy construction ensures a long life against all weather condition,maintaining initial performances through the lifetime of the installation.Product offered in symmetrical light distribution.

Product Description
• Luminaire made of extruded aluminium alloy (grade 6063) with gravity die-cast aluminium components and non corrosive SS fasteners.
• Clear toughened glass.
• Luminaire integrated with 30W LED.
• Luminaires suitable for mounting on 50mm OD pipe.
• Cable entries for through-wiring of mains supply cable.
• Integral constant current power supply.
• CRI (Ra) : >80.
• Prewired with LED driver and suitable for operating on 240V,50Hz single phase ac supply.
• Ordering guide : KL-4849-CCT (Colour Temperature)
• Available CCT : 3000K,4000K,5700K.

Product Benefits
• High luminous efficiency at reduced wattage.
• Elegance,Functionality.
• Environmental friendly.
• Dark sky compliant protects pedestrians from glare,in addition to preventing spill light above the horizontal plane.
• Sustainable LED technology offers durability and optimal light output with low power consumption.

Area of Application

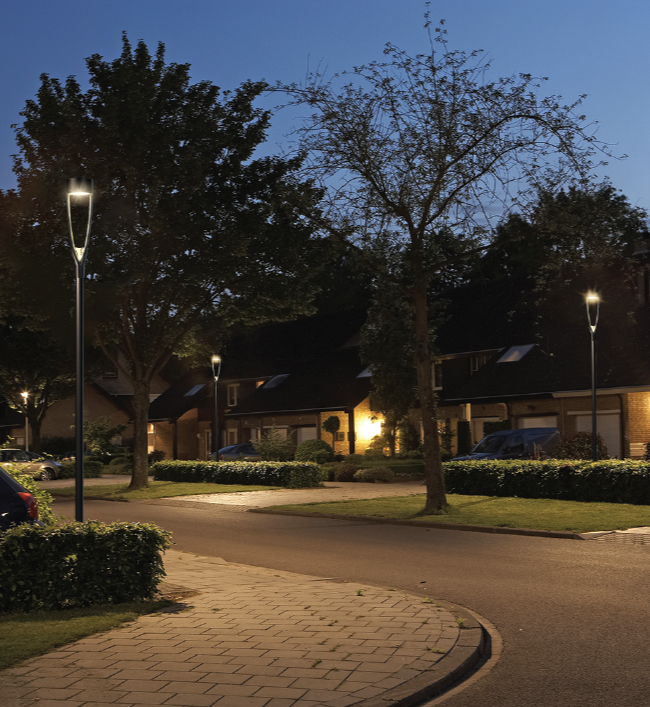

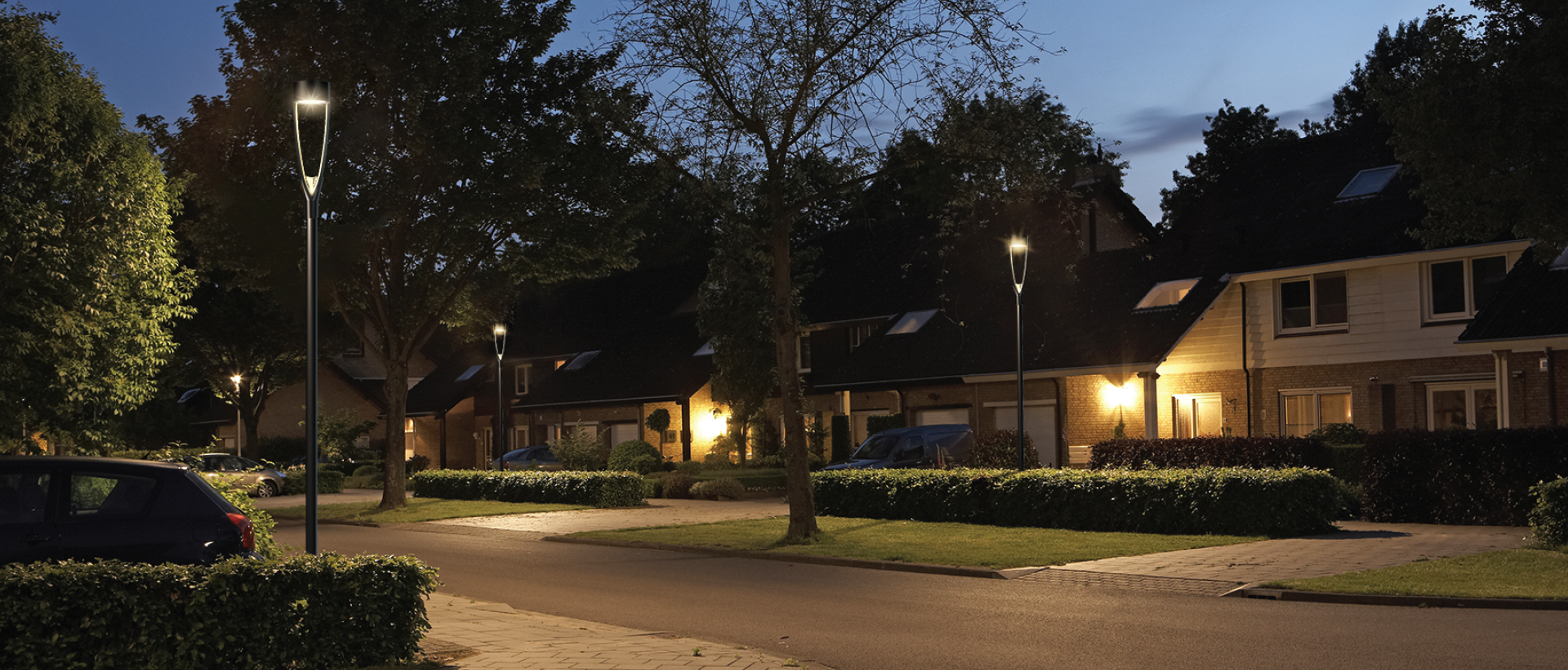

Illuminating parks,Gardens,commercial complex,Pathways in residential buildings & office complex.

Available Finish
Pure polyester powder coated
• Graphite grey
• Anthracite grey
• Jet black.
IDWattageDimensionMounting IESPhotometryTechnical DatasheetTechnical Description

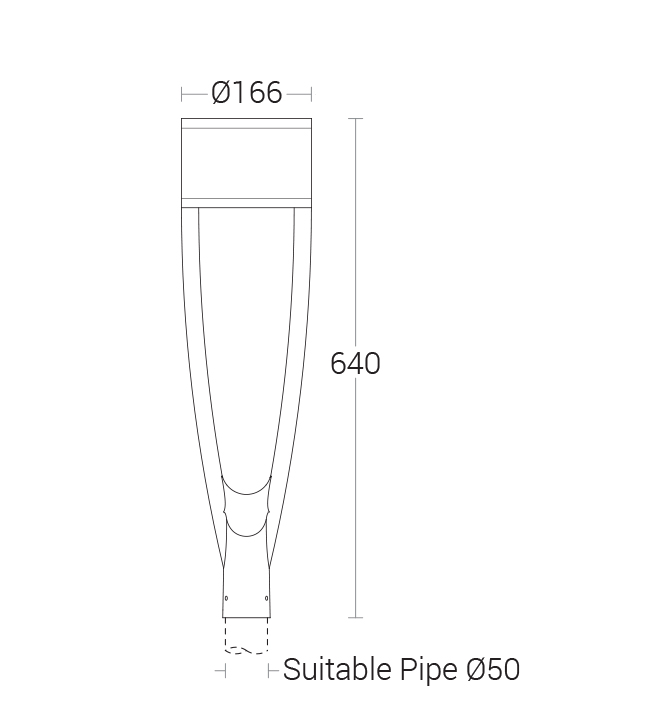

KL-484930W LED 3000K,4000K,5700K BA:120°, Clear Toughened glassØ166 x 605mmD1
KL-4849-BAN/A-WW.IES
KL-4849-BAN/A-WW.PDF
4849.pdf
