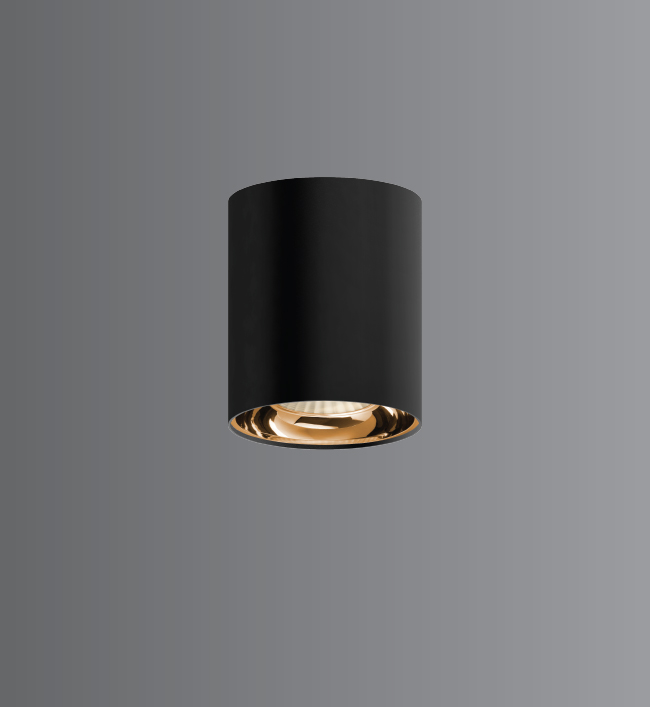

Astra Round
Astra surfaced mounted range of LED ceiling lights are a perfect fit for varied lighting applications. The die cast aluminium housing is ideal for better thermal management. High lumen output / Different wattage options make this luminaire versatile for indoor lighting solutions.

Product Description
• Luminaire made of die-cast aluminium for better thermal management.
• Die-cast aluminium inner ring with reflector for uniform light distribution.
• High PF constant current LED driver.
• Cable entries for through-wiring of mains supply cable
• Available in 30° beam angle
• Suitable for operation on 240V, 50Hz single phase ac supply.
• Safety class II
• Ordering guide : KL-3675-CCT (Colour Temperature)
• Available CCT : 3000K, 4000K, 6000K.

Product Benefits
• Excellent efficiency for high energy savings of up to 80% compared to CFL downlights.
• Replacement of existing CFL downlights with even better performance.
• Quick & simple installation.
• Sustainable LED technology offers durability and optimal light output with low power consumption.

Area of Application
Lobbies & Foyers, Retail Sector, Corridors, Corporate, Residential & Educational premises, Hospitality Industry, Commercial & Business Centers, etc.

Available Finish
Epoxy polyester powder coated Black & Rose Gold.

Downloads
Catalogue Page

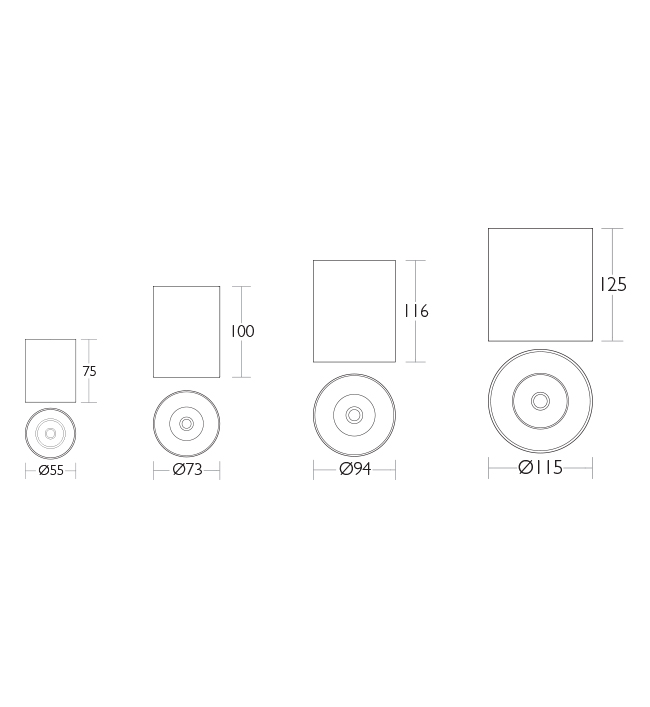

IDWattageDimensionMounting IESPhotometryTechnical DatasheetTechnical Description
KL-368530W LED 2700K,3000K,4000K,5700K BA:30°, Clear PolycarbonateØ115 x 125mmKL-3685-BA30°-WW.IES
KL-3685-BA30°-CW.IES
KL-3685-BA30°-NW.IES
KL-3685-BA30°-WW.PDF
KL-3685-BA30°-CW.PDF
KL-3685-BA30°-NW.PDF
3685.pdf
KL-36755W LED 2700K,3000K,4000K,6500K BA:30°, Clear PolycarbonateØ55 x 75mmKL-3675-BA30°-WW.IES
KL-3675-BA30°-CW.IES
KL-3675-BA30°-NW.IES
KL-3675-BA30°-WW.PDF
KL-3675-BA30°-CW.PDF
KL-3675-BA30°-NW.PDF
3675.pdf
KL-368312W LED 2700K,3000K,4000K,6500K BA:30°, Clear PolycarbonateØ73 x 100mmKL-3683-BA30°-WW.IES
KL-3683-BA30°-CW.IES
KL-3683-BA30°-NW.IES
KL-3683-BA30°-WW.PDF
KL-3683-BA30°-CW.PDF
KL-3683-BA30°-NW.PDF
3683.pdf
KL-368420W LED 2700K,3000K,4000K,6500K BA:30°, Clear PolycarbonateØ94 x 116mmKL-3684-BA30°-WW.IES
KL-3684-BA30°-CW.IES
KL-3684-BA30°-WW.PDF
KL-3684-BA30°-CW.PDF
3684.pdf
