In-Ground Luminaires
These energy efficient In-ground recessed luminaire’s are designed to create luminous walkways, or accentuate architecture elements in facades and landscapes providing distinctive lighting effects.Designed for high lumen efficiency at reduced wattage creating exceptional lighting effects.

Product Description
• Luminaire made up of die-cast aluminium & Stainless steel.
• Hard chromeplated stainless steel 316 grade front ring.
• Silicone gasket.
• Toughened clear glass.
• Luminaire hard wired with 3 x 0.5mm2 cable of 0.5 metre length.
• Supplied with mounting sleeve for preparing recessed opening in ground or wall.
• Cable entries for through-wiring of mains supply cable.
• Integral constant current power supply
• CRI (Ra) : >80 (90 CRI - On Request)
• Prewired with LED driver and suitable for operating on 240V, 50Hz single phase ac supply.
• Ordering guide : KL-4146-CCT (Colour Temperature)
• Available CCT : 3000K, 4000K, 5700K

Product Benefits
• High luminous efficiency at reduced wattage.
• A sleek and minimalist shape provides distinctive lighting effects for inground and wall architecture.
• Sustainable LED technology offers durability and optimal light output with low power consumption.

Area of Application

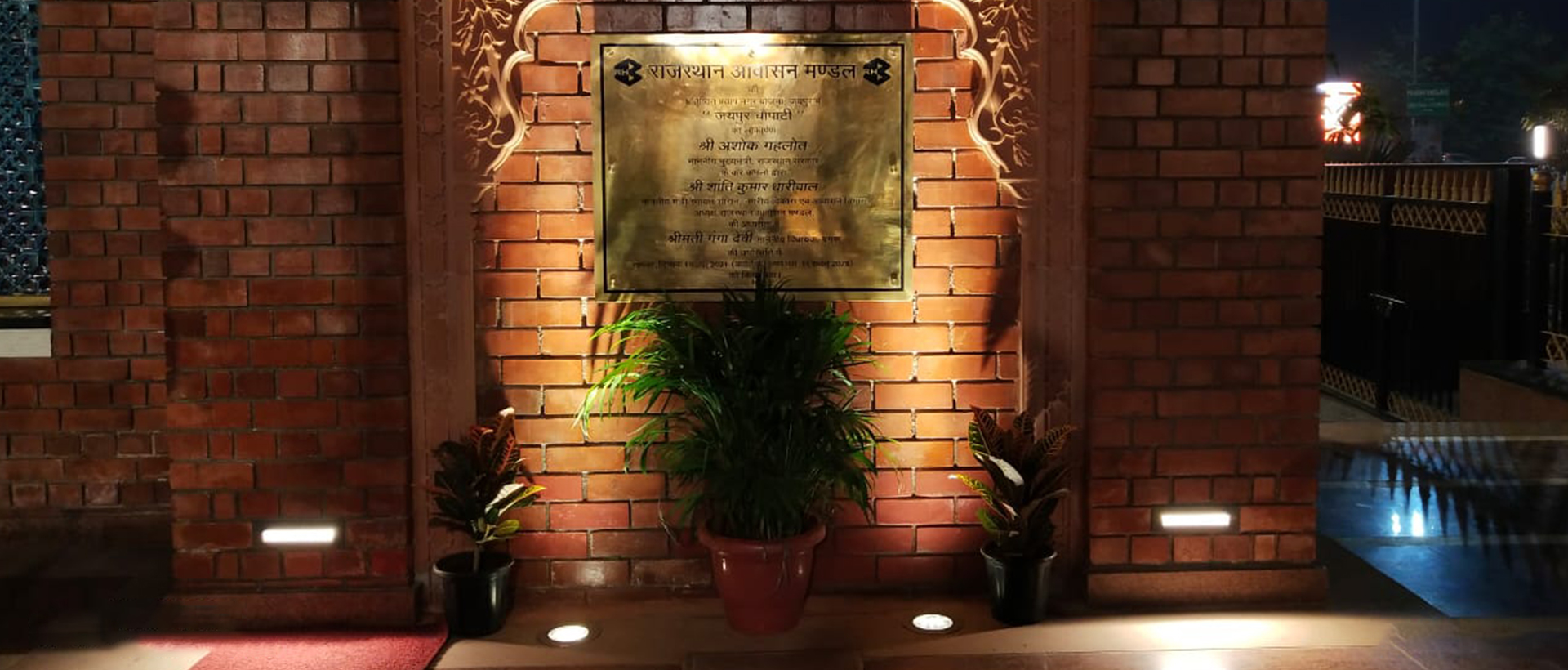

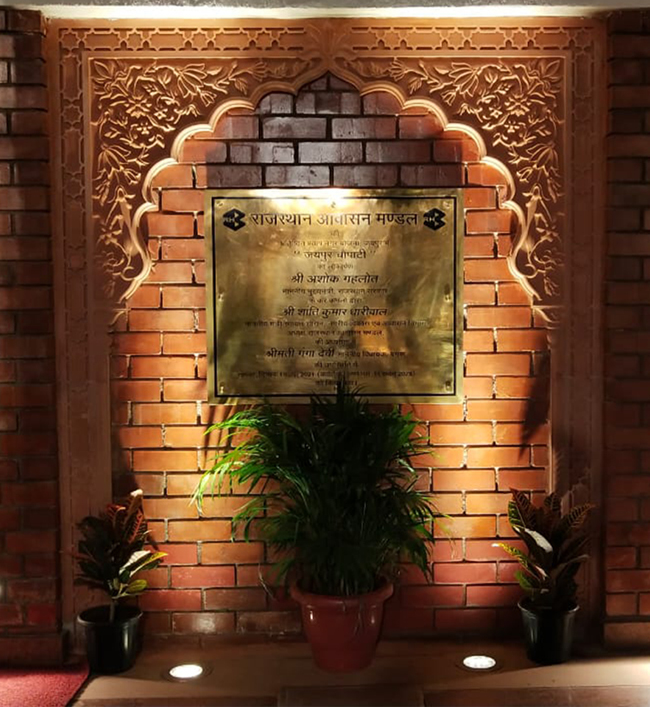

Walk ways, Facades, Landscapes, Architectural elements.

Accessory
• Supplied with IP67 rated connector for a secure connection to the network.
• ABS Plastic outer costing for easy installation.

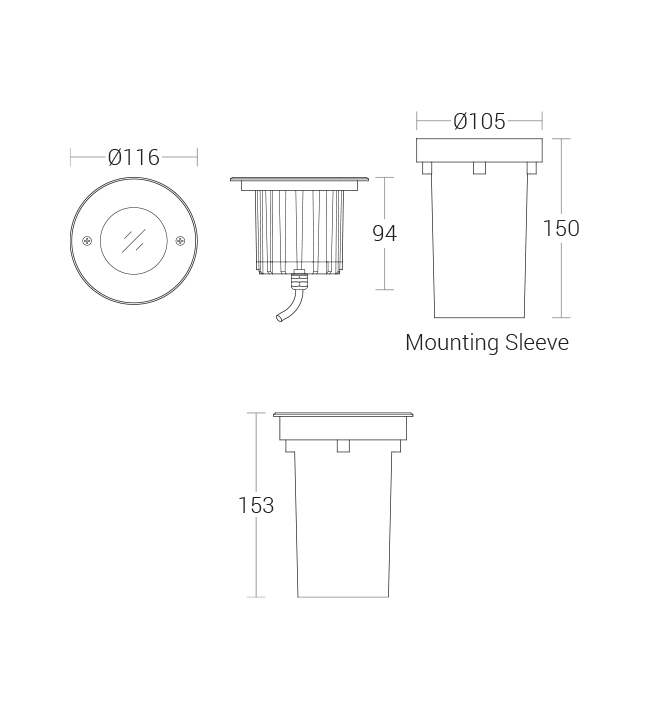

IDWattageDimensionMounting IESPhotometryTechnical DatasheetTechnical Description
KL-41469W LED Symmetrical Honeycomb 2700K,3000K,4000K,6500K BA:25°,40°,15°, Toughened Clear GlassØ116 x 153mmKL-4146-BA40°-WW.IES
KL-4146-BA25°-CW.IES
KL-4146-BA25°-NW.IES
KL-4146-BA25°-WW.IES
KL-4146-BA40°-WW.PDF
KL-4146-BA25°-CW.PDF
KL-4146-BA25°-NW.PDF
KL-4146-BA25°-WW.PDF
4146.pdf
KL-4146.txt
