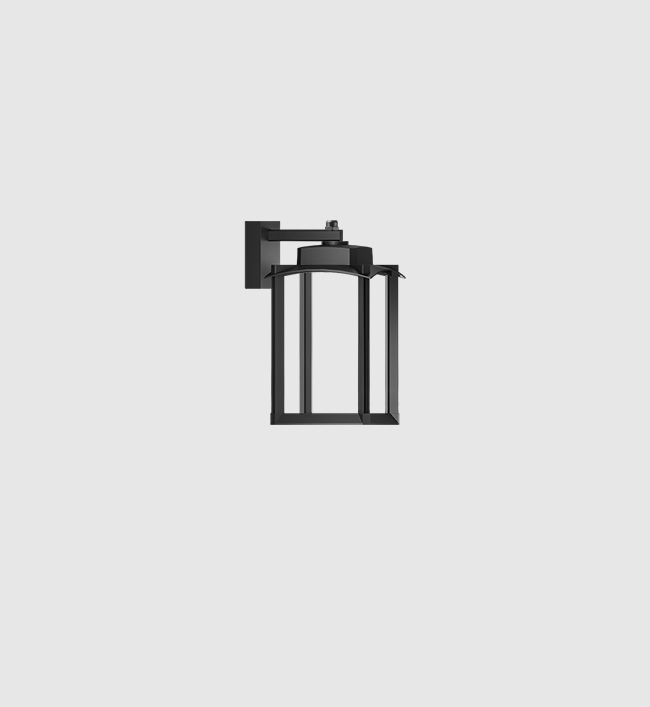

Cyrilla

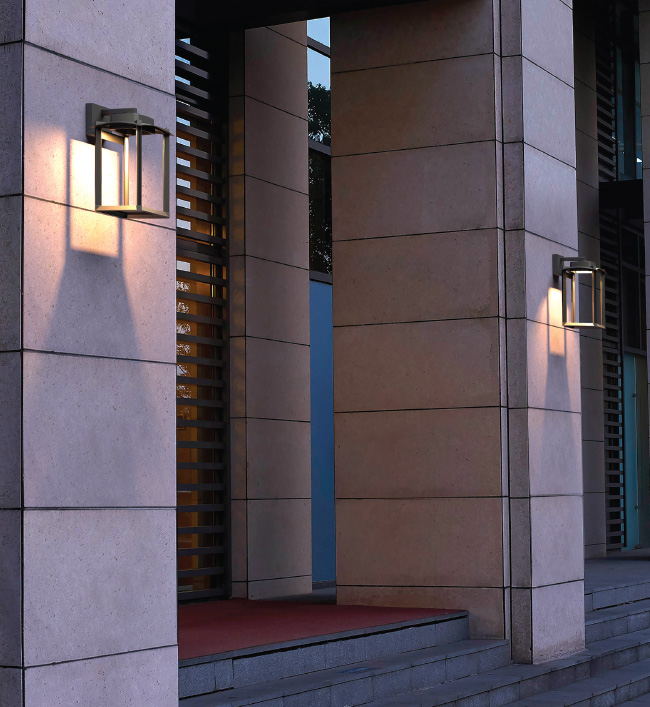

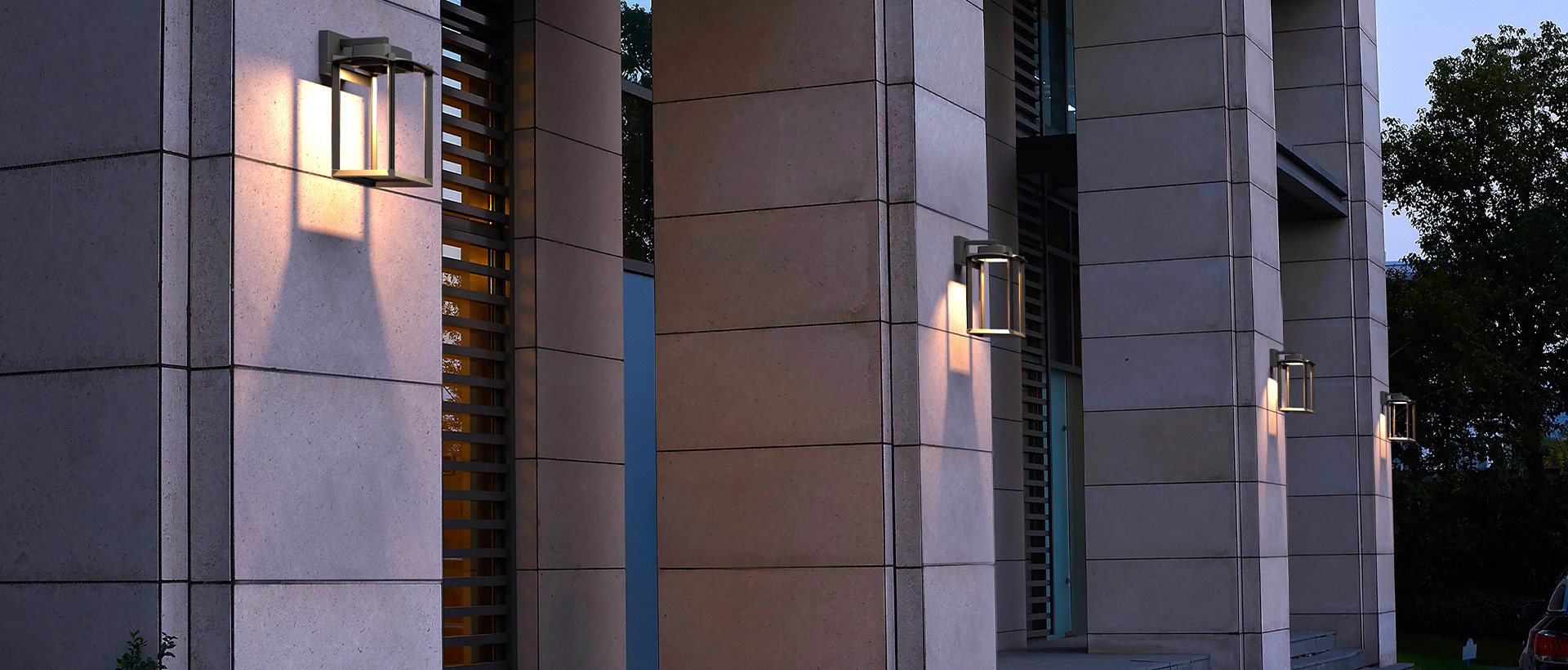

Surface mounted range of wall lights are a perfect fit for varied outdoor lighting applications.Designed to illuminate the wall and surface in front of wall and for light accents on vertical surfaces.

Product Description
• Luminaire top cover & bottom frame made of pressure die-cast aluminium with extruded aluminium alloy (grade 6063) supporting arm.
• Translucent acrylic diffuser.
• Luminaire integrated with 12W LED.
• Aluminium base for easy installation onto the wall.
• Surface mounting on wall using hardware after connecting to the power supply.
• Cable entries for through-wiring of mains supply cable.
• Integral constant current power supply.
• CRI (Ra) : >80 (90 CRI - On Request).
• Prewired with LED driver and suitable for operating on 240V,50Hz single phase ac supply.
• Ordering guide : KL-4352-CCT (Colour Temperature)
• Available CCT : 3000K, 4000K, 5700K.

Product Benefits
• Sturdy construction in order to maintain performance of the luminaire and to reduce maintenance costs.
• Quick & simple installation with low maintenance.
• Sustainable LED technology offers durability and optimal light output with low power consumption.

Area of Application
Residential,Building facade,Commercial centres,Passages,Pathways,Sculptures and Structures.

Available Finish
Pure polyester powder coated
• Graphite grey
• Anthracite grey
• Jet black.
IDWattageDimensionMounting IESPhotometryTechnical DatasheetTechnical Description
KL-4338E27 Holder, Translucent Acrylic257 x 206 x 326mmW28
Detailed Foundation Drawing
4338.pdf
KL-435212W LED 3000K,4000K,5700K, Translucent Acrylic257 x 206 x 326mmW28
Detailed Foundation Drawing
4352.pdf
