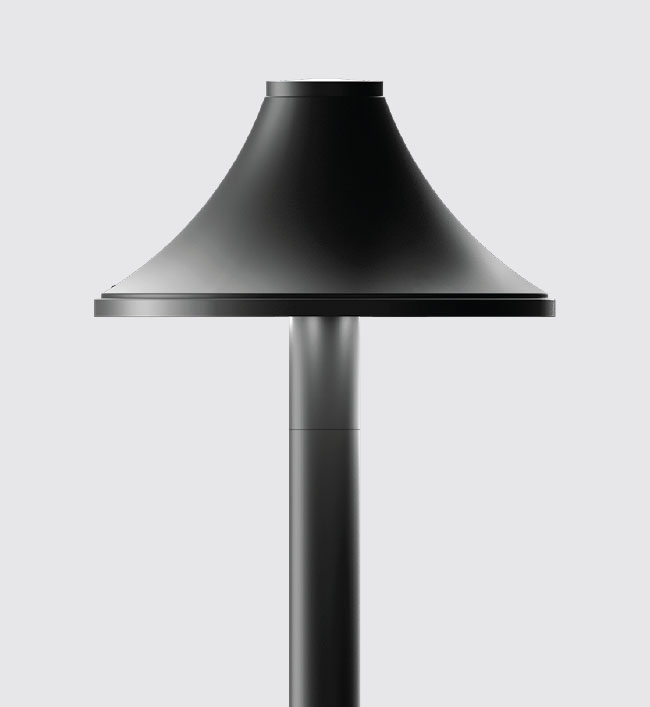

Umbrella
The "Umbrella" outdoor lighting system seems like a comprehensive solution for various outdoor settings. Its emphasis on safety and reliability ensures peace of mind in any environment. The design's capacity to effectively illuminate large areas with minimal obstruction suggests versatility and practicality, accommodating different scenarios seamlessly.

Material
Body : Spun aluminium & Die cast aluminium
Ingress Protection : IP65 LED Module
Lens : Polycarbonate optical lens
Mounting : Extruded aluminium pipe (grade 6063).
Suitable for mounting on 88.9mm OD pole

Electrical
Driver : Standard
Power Supply : Integral
Input Voltage : 230-240Vac / 50-60 Hz
Surge : 6KV

Product Configurations
Wattage : 200W
Light Distribution : Symmetrical
CCT : 3000K / 4000K / 5700K
LED Life Time : L70 B10 1,00000 H

Area of Application
Area lighting, Traffic junction, Campus Lighting, Resorts, Shopping centres, Medium size bridge cross ways, Port, Shipment yards, Sports Lightings, Airports etc.,

Available Finish
Pure polyester powder coated
RAL 9004 Signal black
RAL 9007 Grey aluminium
RAL 7016 Anthracite grey

Downloads
Catalogue Page
IDWattageDimensionMounting IESPhotometryTechnical DatasheetTechnical Description

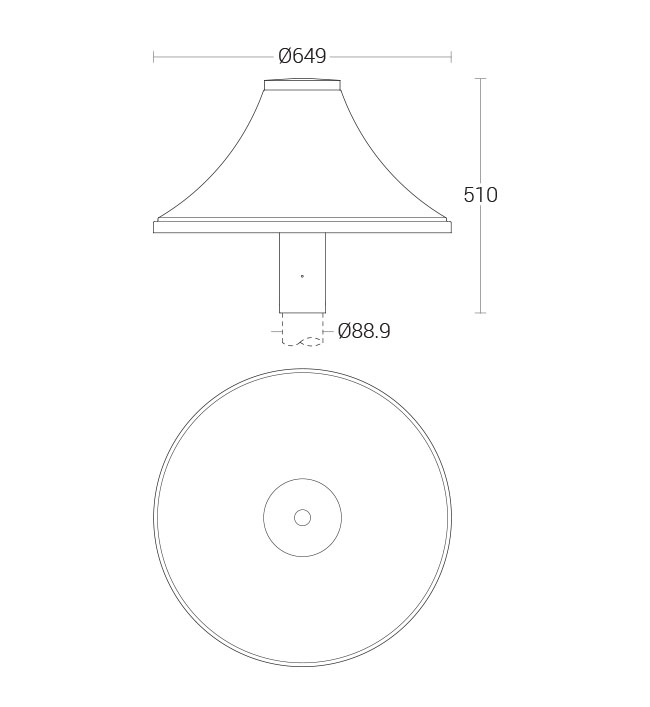

KL-4451200W LED 3000K,4000K,5700K BA:Symmetrical, Polycarbonate Optical LensØ649 x 510mmD26
KL-4451.IES
KL-4451.IES
KL-4451.PDF
KL-4451.PDF
4451.pdf
