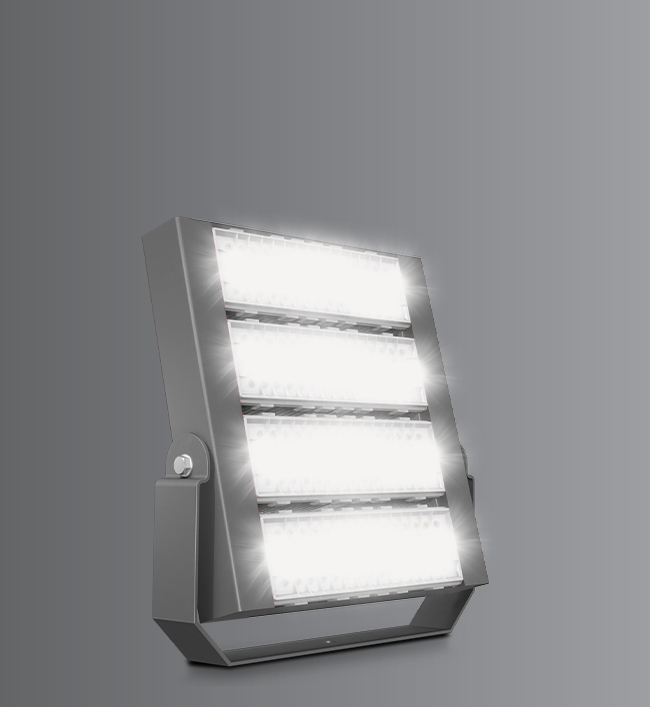

High efficiency LED flood light luminaires designed to provide uniform illumination in open spaces. Design and construction of the luminaires is characterized by its high luminous efficiency, extremely long service life. Sturdy construction makes Aston especially suitable for areas where a high level of robustness is required.
Product Description• Housing made of aluminium & self supported steel frame work
• High efficiency polycarbonate optical lens
• Excellent thermal management heat sink
• Luminous flux up to 7200 lm ± 300 lm (60W)
• Efficiency up to 120 lm/W
• Mounting bracket to facilitate proper aiming of the luminaire at desired angle during installation.
• Available in 12° / 25° / 40° / 60° beam angles.
• Luminaire supplied with fast IP67 Connectors.
• Integral constant current power supply
• CRI ( Ra) : >70
• Prewired with LED driver and suitable for operating on 240V, 50Hz single phase ac supply.
• Ordering guide : KL-6788-CCT (Colour Temperature)
• Available CCT : 3000K, 4000K, 5700K, Amber (25°)
Product Benefits• High luminous efficiency at reduced wattage.
• Versatile use, Simple installation
• Varied optics
• Sustainable LED technology offers durability and optimal light output with low power consumption.

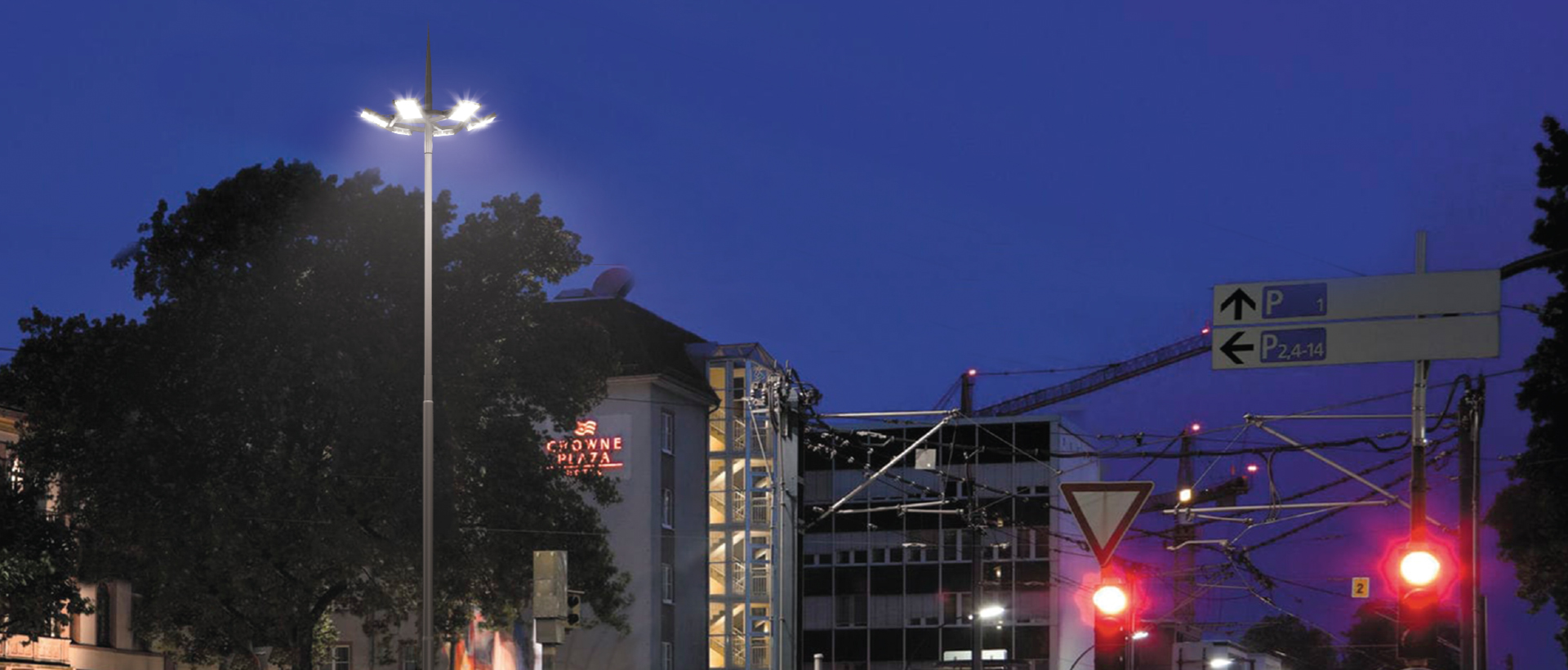

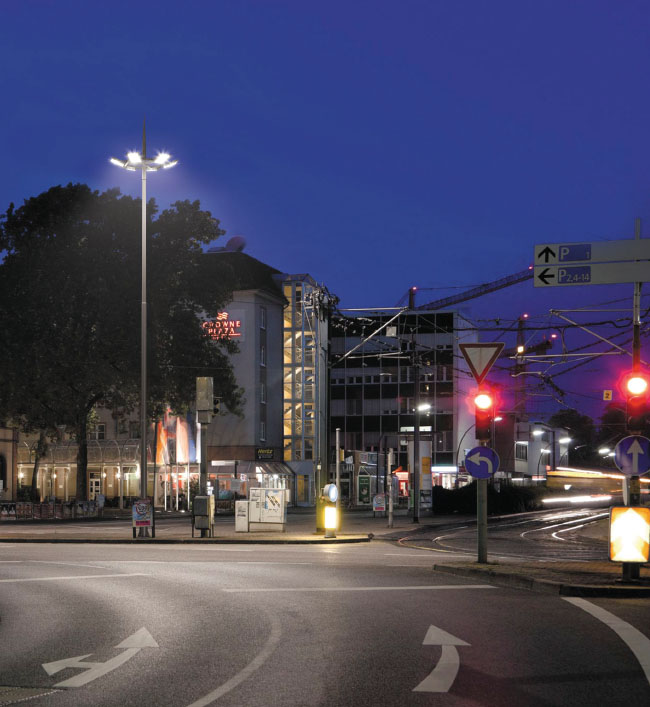

Area of ApplicationHighmast, Ports & Terminals, Sports Lighting, Industrial sector, Ware houses, Cold storage, Logistic hubs, Commercial & Business centres and Area Lighting.
Available FinishPure polyester powder coated
RAL 9004 Signal black
RAL 9007 Grey aluminium
RAL 7016 Anthracite grey
Graphite grey
