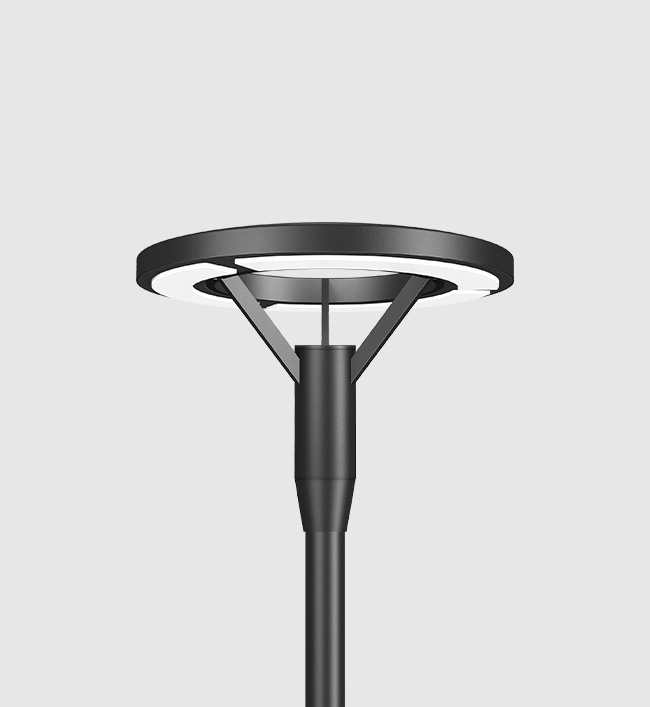

Juno
This elegant lantern features a translucent diffuser that delivers a soft, glare-free light, creating a comfortable and inviting atmosphere. Its thoughtfully designed, robust construction ensures long-lasting performance, even in harsh weather conditions. With its enduring durability and consistent light output, this lantern maintains its initial quality throughout its lifespan, offering a reliable and stylish lighting solution for any environment

Product Description
• Aluminium housing, integrated with extruded aluminium pipe along with pressure die cast aluminium base through supporting arms made of gravity die cast aluminium.
• Diffuser placed into the provision formed on the pheriphery of the bottom cover.
• Non yellowing UV stabilized translucent acrylic diffuser.
• Low power loss LED driver with 60W LED.
• Suitable for mounting on 60mm OD pipe.
• Cable entries for through-wiring of mains supply cable.
• Integral constant current power supply
• CRI ( Ra) : >80
• Prewired with LED driver and suitable for operating on 240V, 50Hz single phase ac supply.
• Ordering guide : KL-5040-CCT (Colour Temperature)
• Available CCT : 2700K, 3000K, 4000K, 5700K

Product Benefits
• Elegance, Functionality.
• Environmental friendly, moisture proof, insect free.
• Dark sky compliant protects pedestrians from glare, in addition to preventing spill light above the horizontal plane.
• Sustainable LED technology offers durability and optimal light output with low power consumption

Area of Application

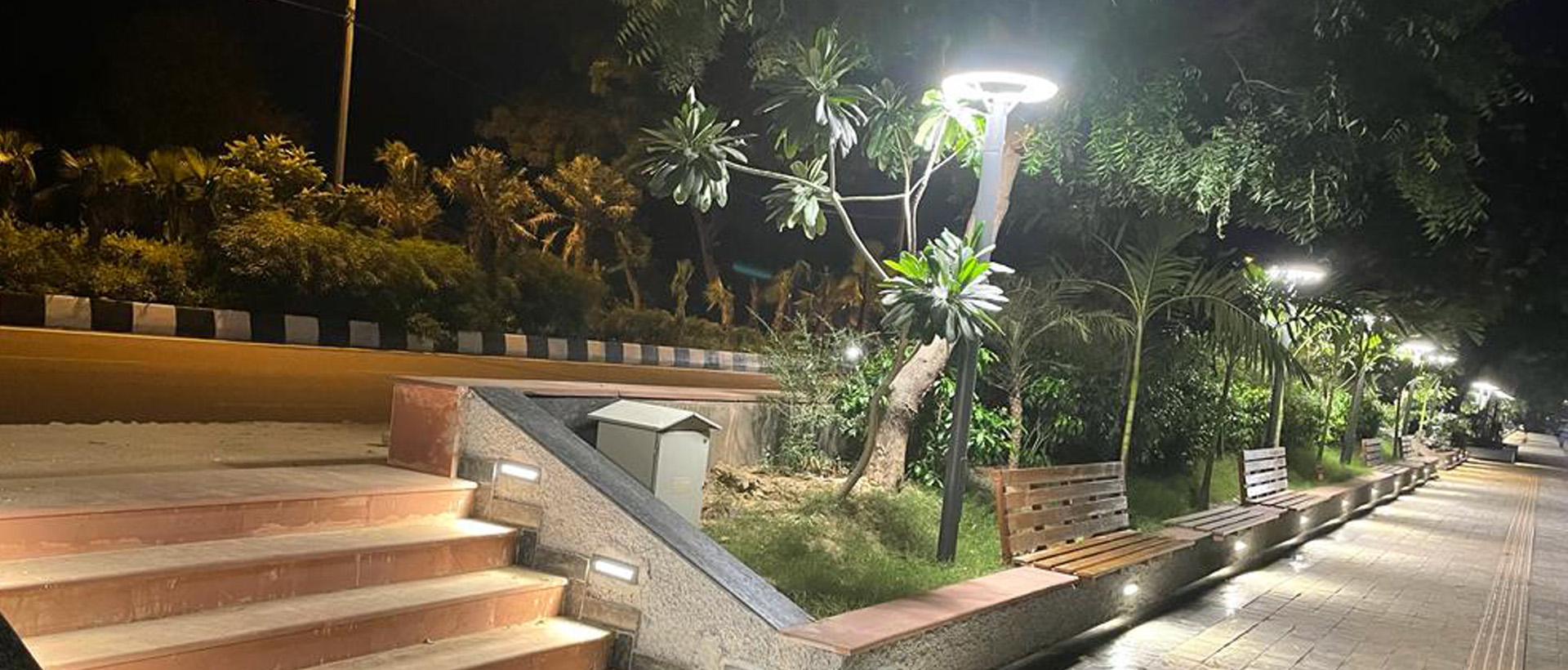

Illuminating parks, Gardens, commercial complex, Pathways in residential buildings & office complex

Available Finish
Pure polyester powder coated
RAL 9004 Signal black
RAL 9007 Grey aluminium
RAL 7016 Anthracite grey
Graphite grey
IDWattageDimensionMounting IESPhotometryTechnical DatasheetTechnical Description

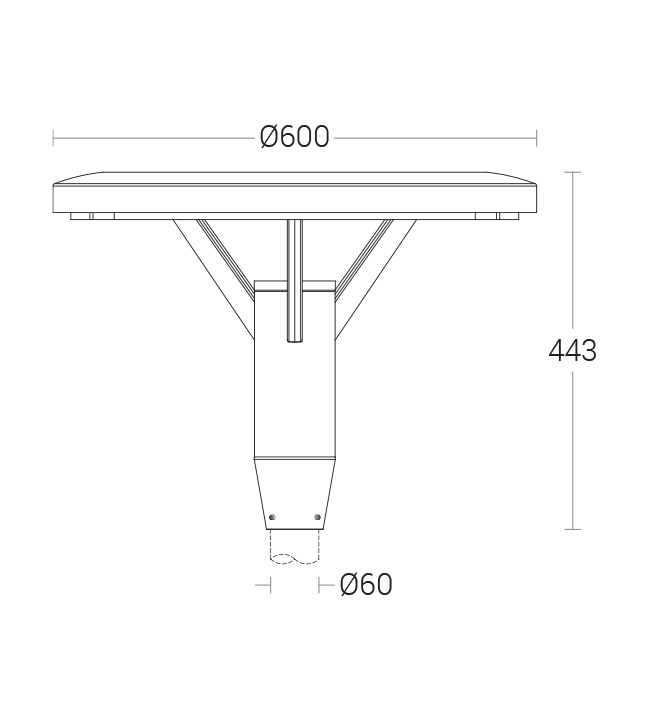

KL-504060W LED 2700K,3000K,4000K,5700K BA:120°, Translucent AcrylicØ600 x 443mmD2
KL-5040-BA120°-WW.IES
KL-5040-BA120°-CW.IES
KL-5040-BA120°-NW.IES
KL-5040-BA120°-WW.PDF
KL-5040-BA120°-CW.PDF
KL-5040-BA120°-NW.PDF
5040.pdf
KL-5040.txt
