Ring Fort Arc Mini

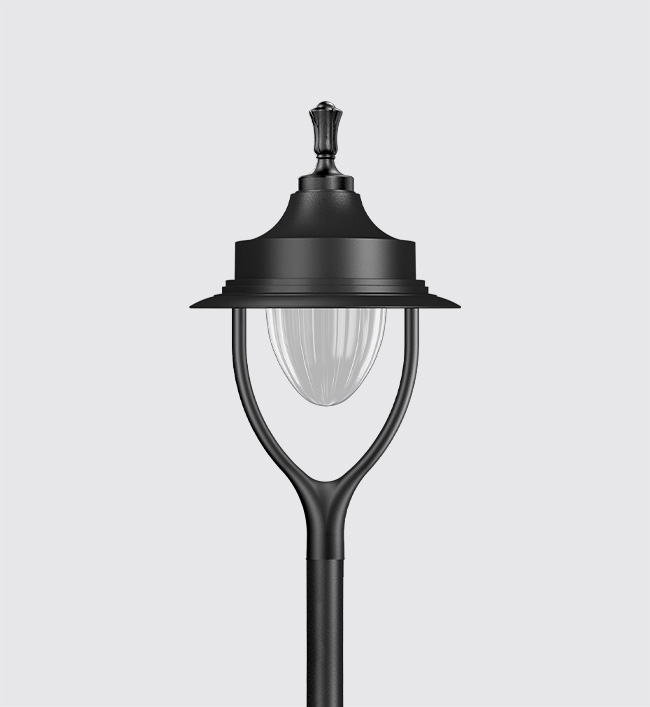

A modern heritage post top luminaire upgraded with high performance light engines.Aesthetically designed sturdy construction ensures a long life against all weather condition,maintaining initial performances through the lifetime of the installation.Product offered in symmetrical light distribution.

Product Description
• The luminaire comprises of specially contoured spun aluminium top cover,gravity die cast aluminium supporting arms with mountaing base.
• Non yellowing UV stabilised,V translucent acrylic diffuser.
• Luminaire integrated with 30W LED.

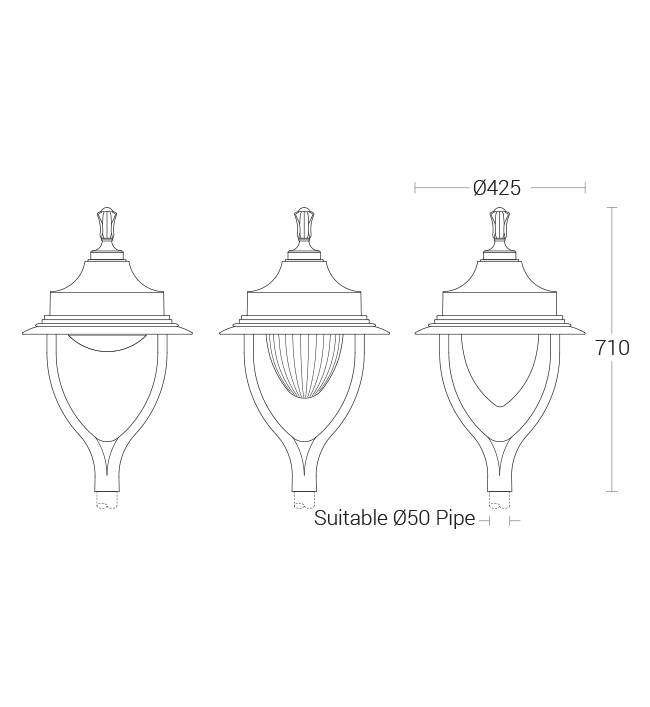

• Luminaires suitable for mounting on 50mm OD pipe.
• Cable entries for through-wiring of mains supply cable
• Integral constant current power supply
• Prewired with LED driver and suitable for operating on 240V,50Hz single phase ac supply.
• Ordering guide : KL-5000-CCT (Colour Temperature)
• Available CCT : 3000K, 4000K, 5700K.

Product Benefits
• High luminous efficiency at reduced wattage.
• Environmental friendly.
• Corrosion resistant and easy maintanance.
• Quick installation and low assembly costs.
• Dark sky compliant protects pedestrians from glare,in addition to preventing spill light above the horizontal plane.
• Sustainable LED technology offers durability and optimal light output with low power consumption.

Area of Application

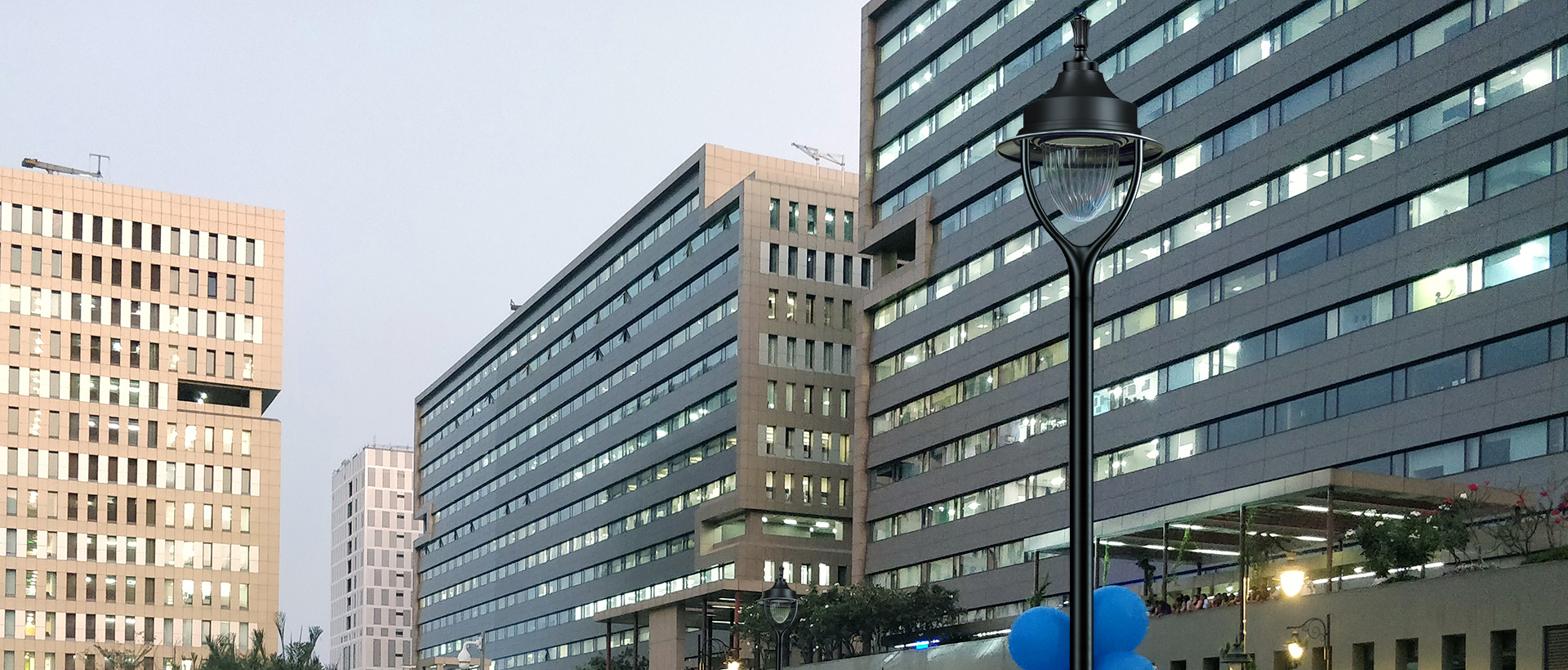

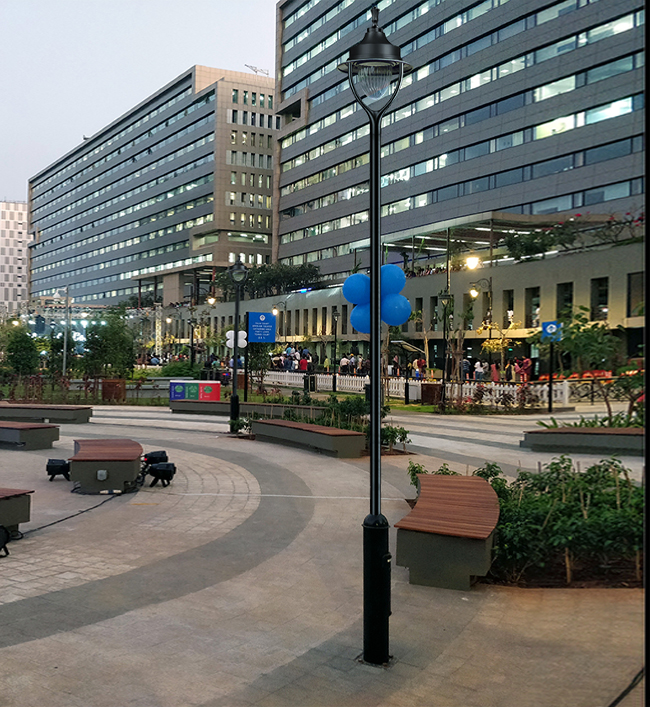

Illuminating parks,Gardens,Commercial complex,Residential roadways,Walkways,Streetscapes & office complex.

Available Finish
Pure polyester powder coated
• Graphite grey
• Anthracite grey
• Jet black.
IDWattageDimensionMounting IESPhotometryTechnical DatasheetTechnical Description
KL-451850W LED 2700K,3000K,4000K,5700K BA:Type IV, A9 - Clear Acrylic, A12 - Clear PolycarbonateØ425 x 710mmD1
KL-4518-BAASYMMETRICAL-WW.IES
KL-4518-BAASYMMETRICAL-CW.IES
KL-4518-BAASYMMETRICAL-NW.IES
KL-4518-BAASYMMETRICAL-WW.PDF
KL-4518-BAASYMMETRICAL-CW.PDF
KL-4518-BAASYMMETRICAL-NW.PDF
4518.pdf
KL-500030W LED 3000K,4000K,5700K, A8 - Translucent Acrylic, A10 - Translucent AcrylicØ425 x 710mmD1
5000.pdf
KL-519230W LED 2700K,3000K,4000K,5700K BA:Type IV, A9 - Clear Acrylic, A12 - Clear PolycarbonateØ425 x 710mmD1
KL-5192-BAASYMMETRICAL-WW.IES
KL-5192-BAASYMMETRICAL-CW.IES
KL-5192-BAASYMMETRICAL-NW.IES
KL-5192-BAASYMMETRICAL-WW.PDF
KL-5192-BAASYMMETRICAL-CW.PDF
KL-5192-BAASYMMETRICAL-NW.PDF
5192.pdf
KL-5353E27 Holder, A8 - Translucent Acrylic, A9 - Clear Acrylic, A12 - Clear PolycarbonateØ425 x 710mmD1
5353.pdf
